Acoustic Design Works Acoustic Panel Mondrian Kit - 4 pieces
Acoustic Design Works Acoustic Panel Mondrian Kit - 4 pieces

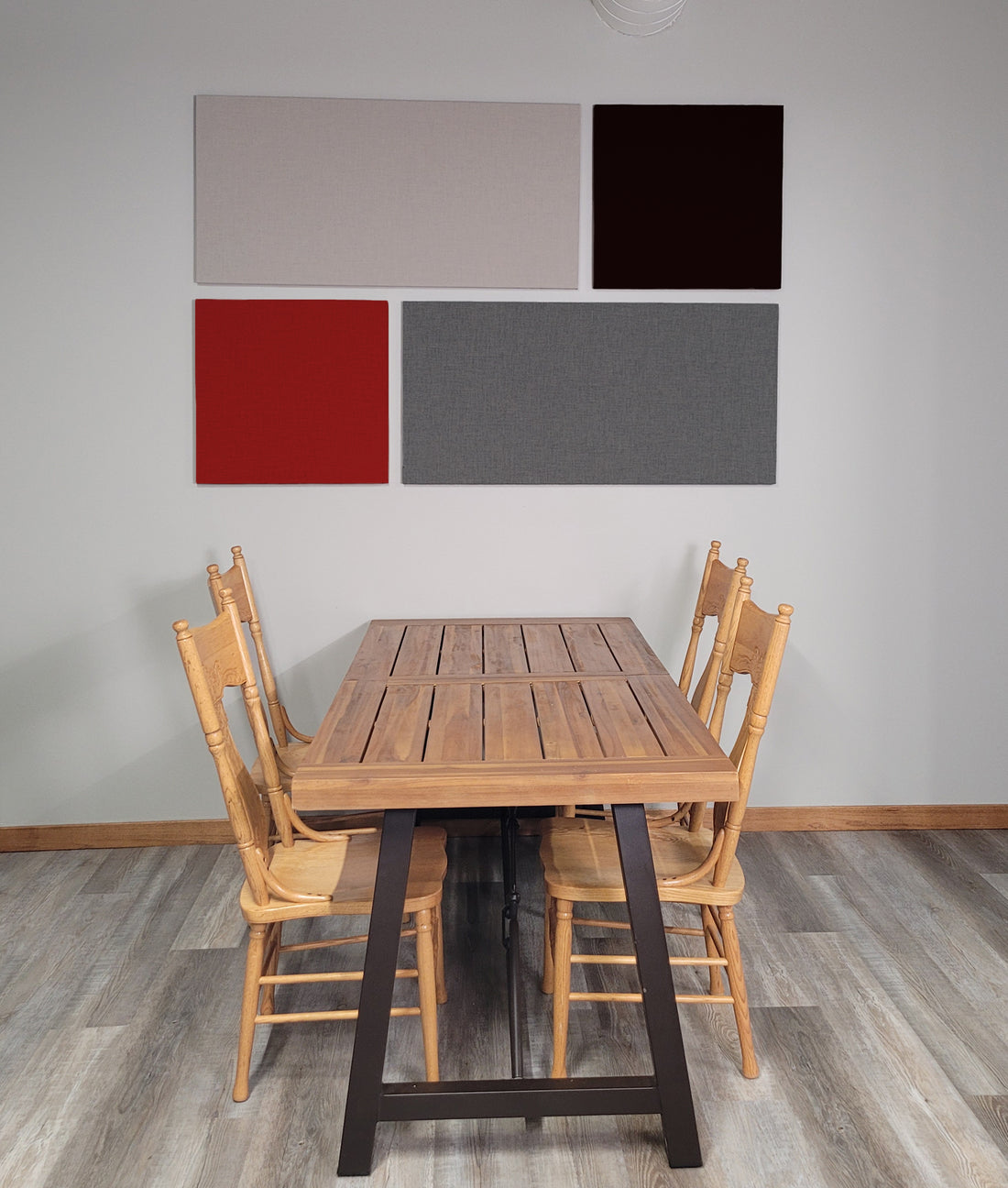

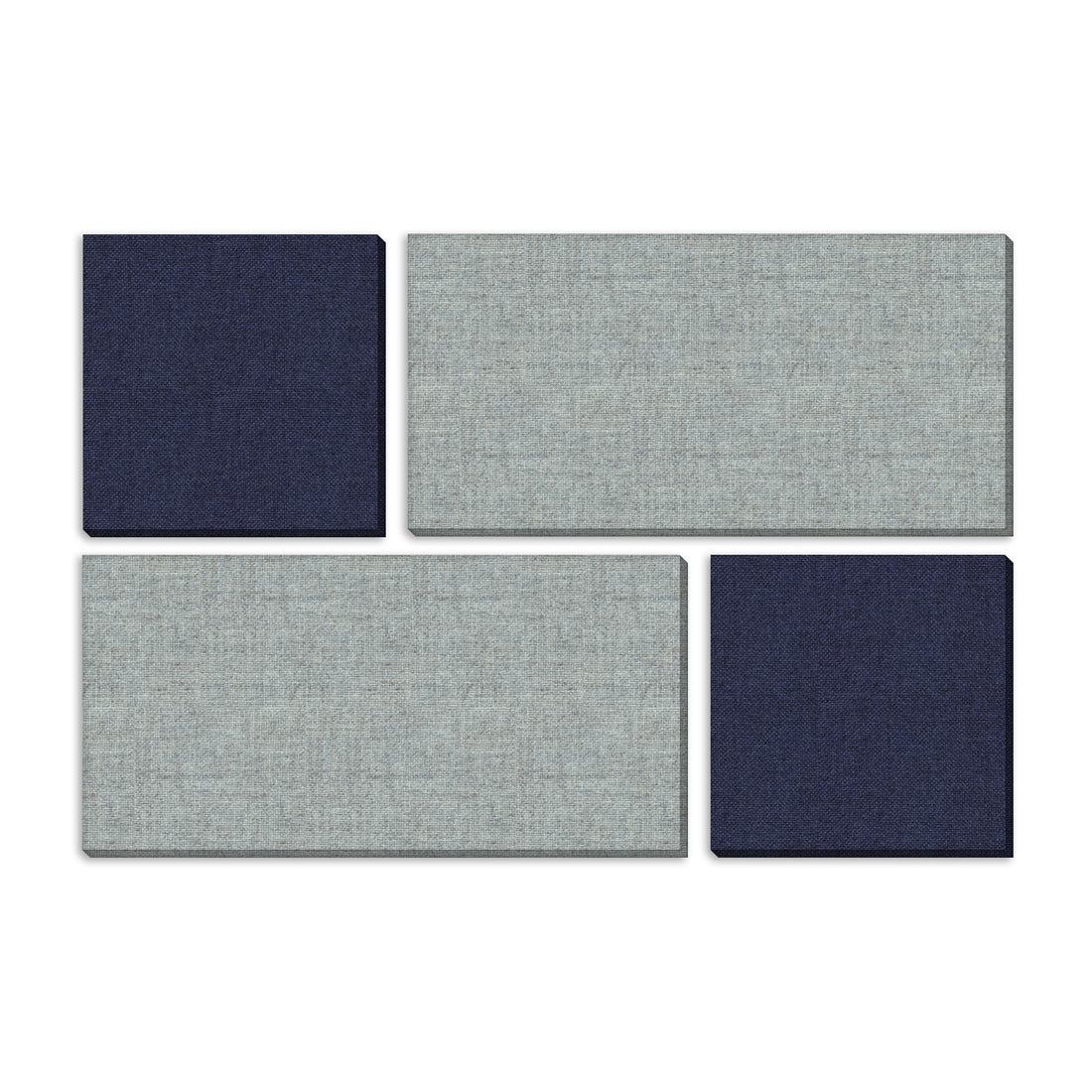

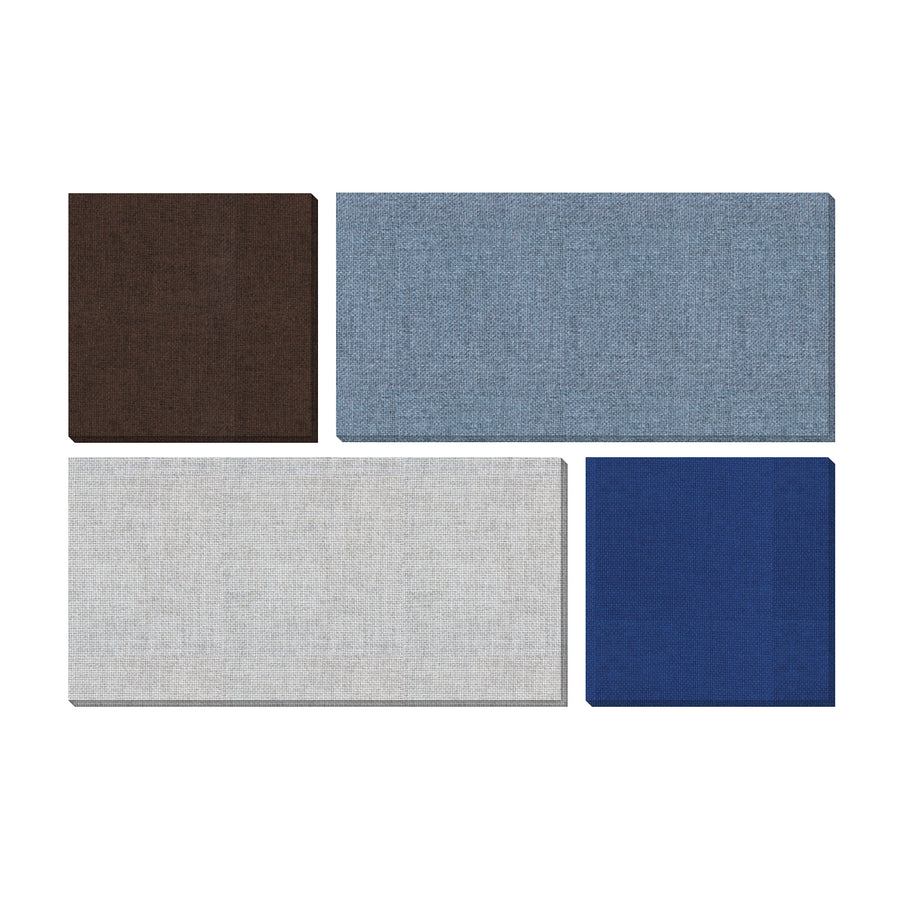

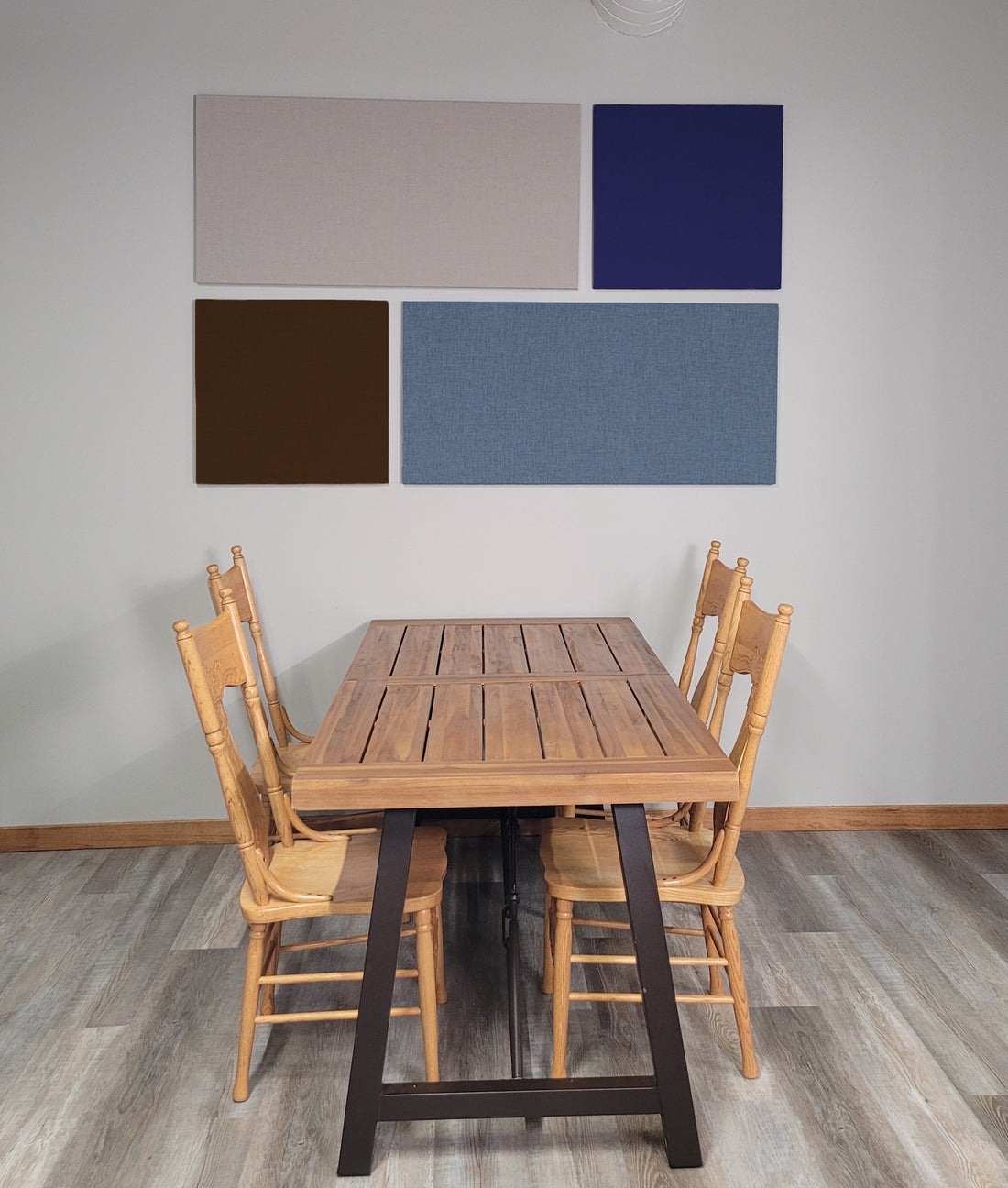

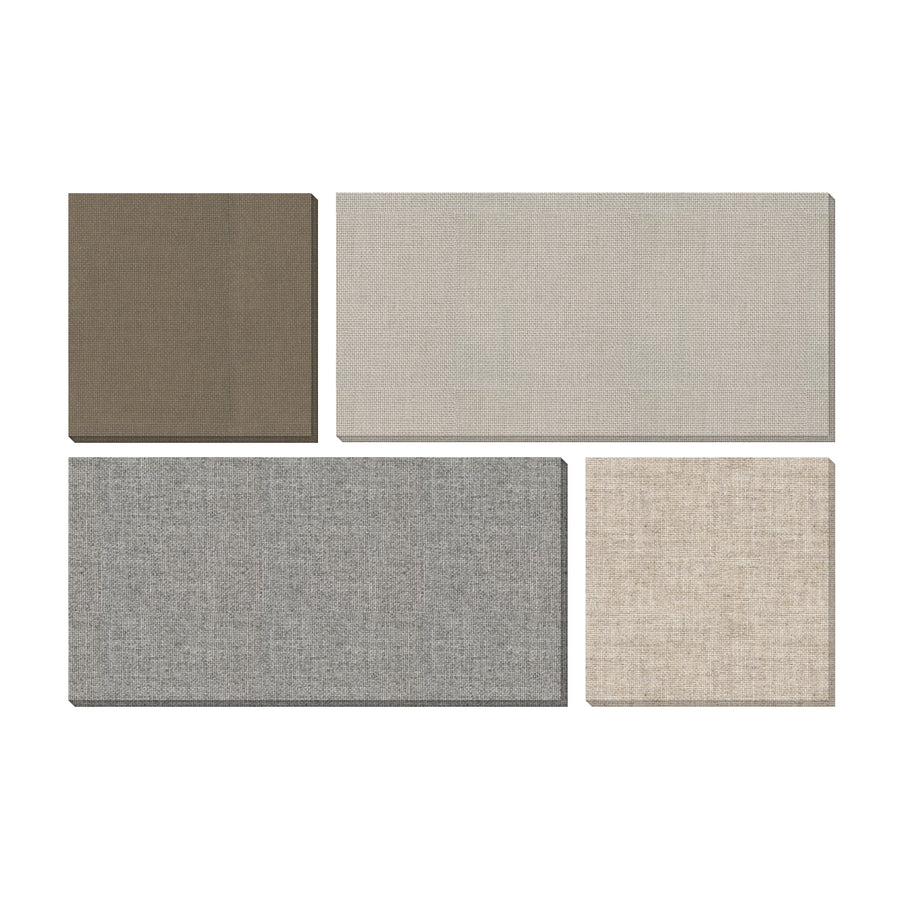

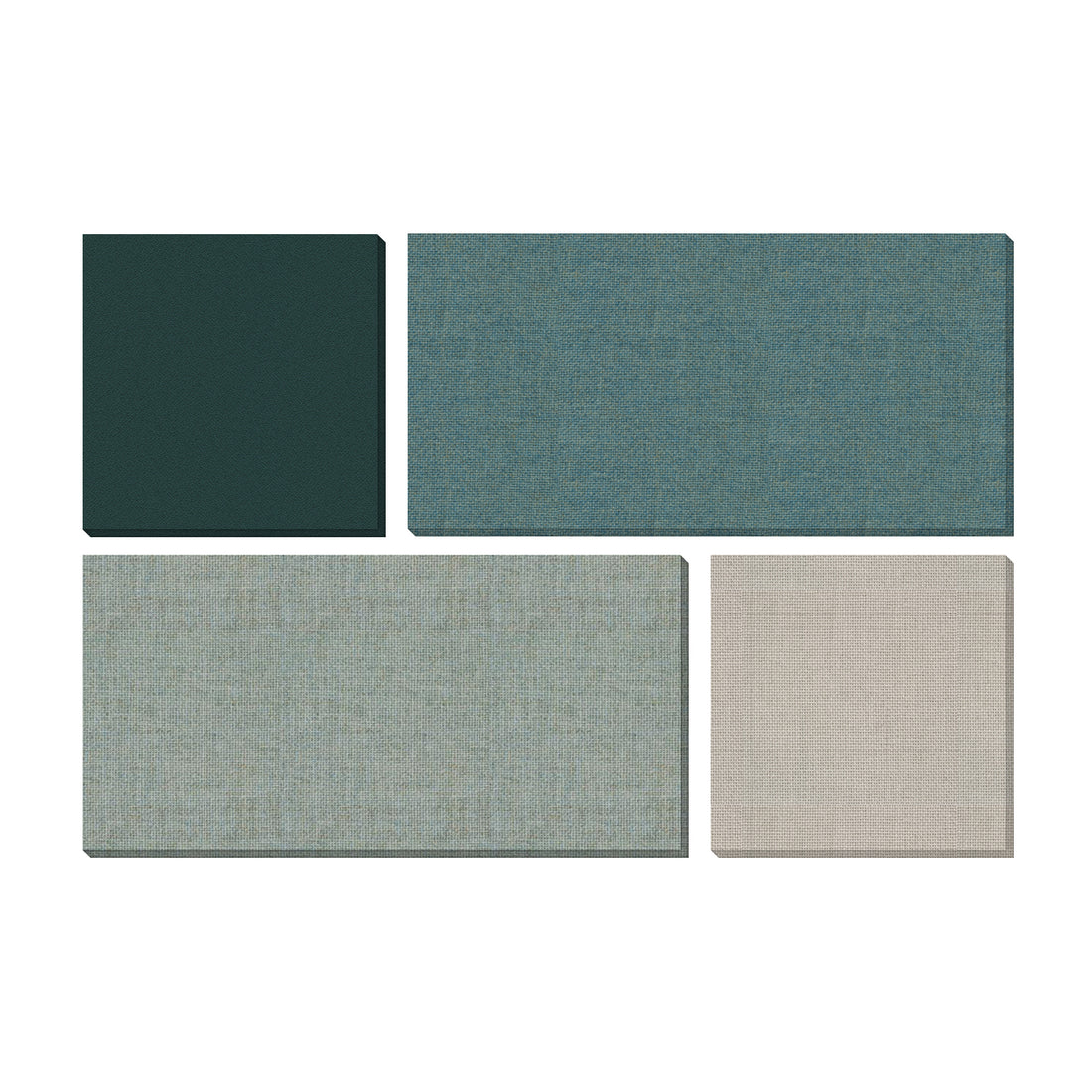

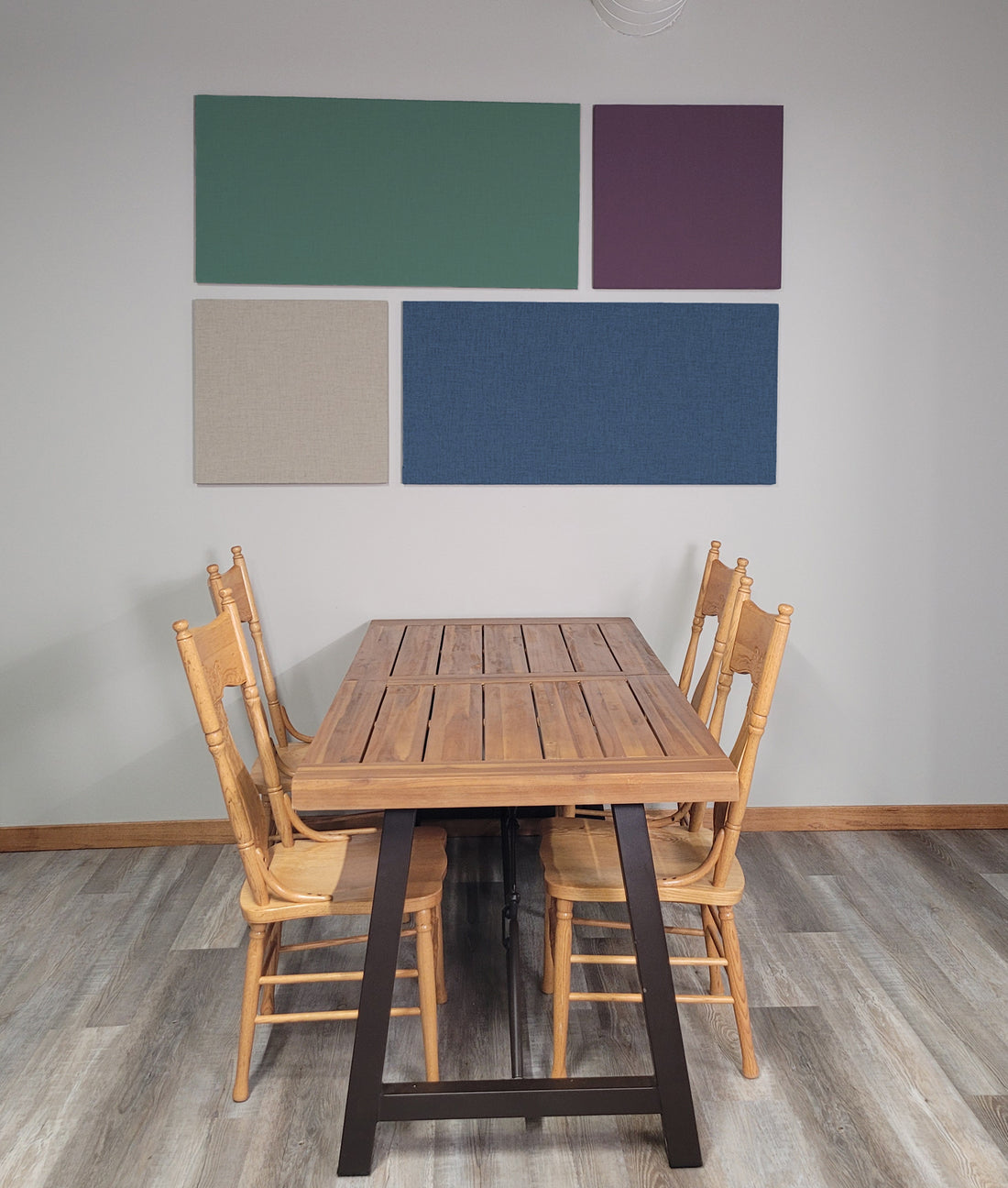

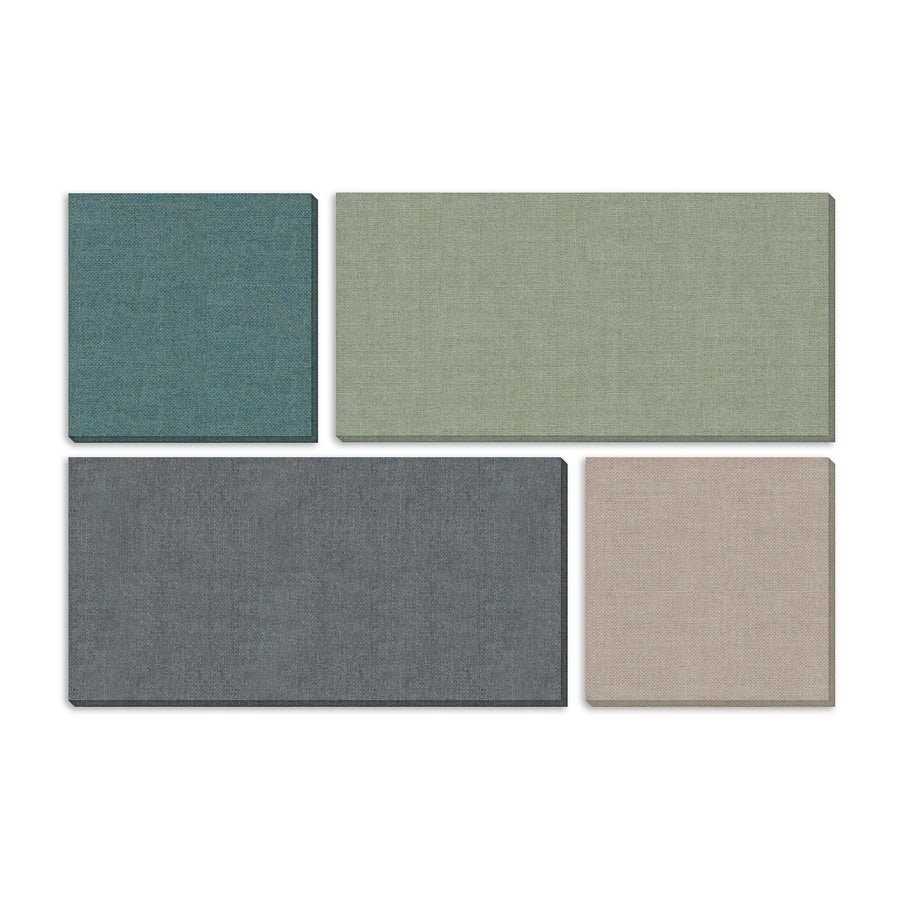

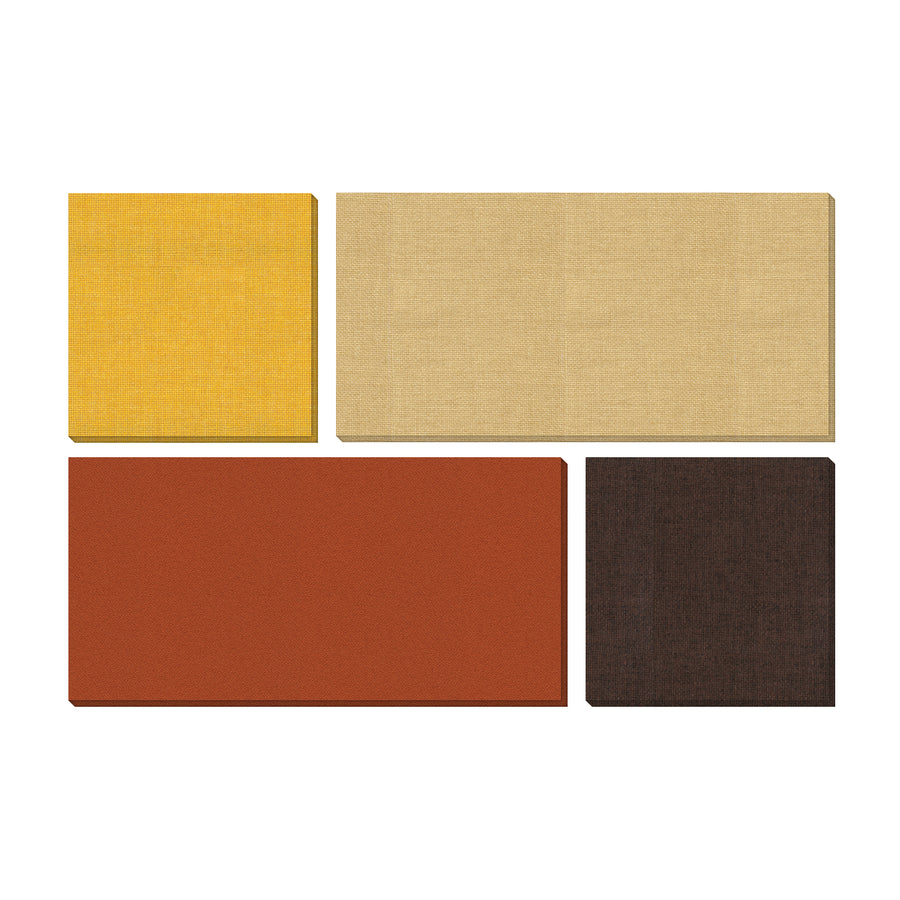

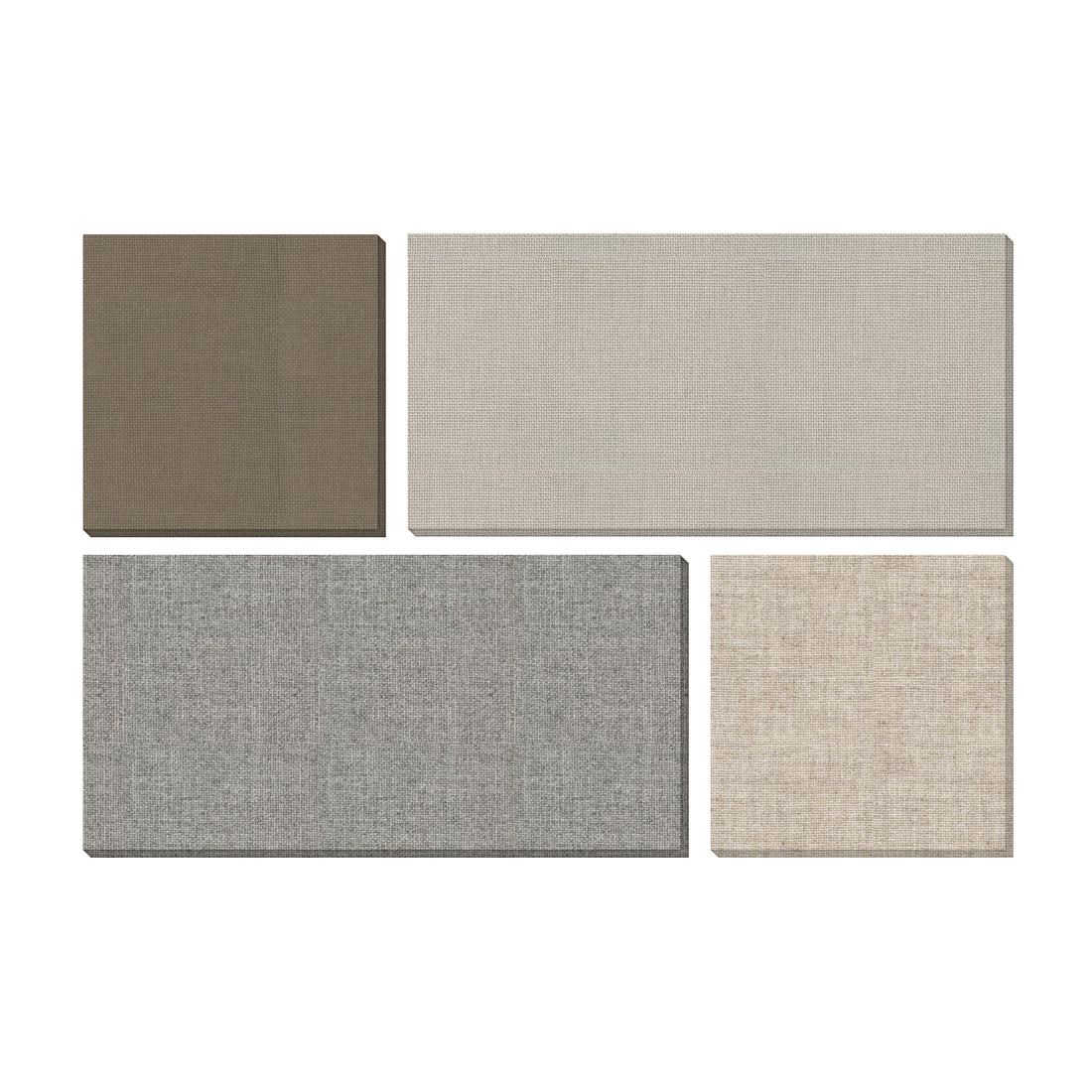

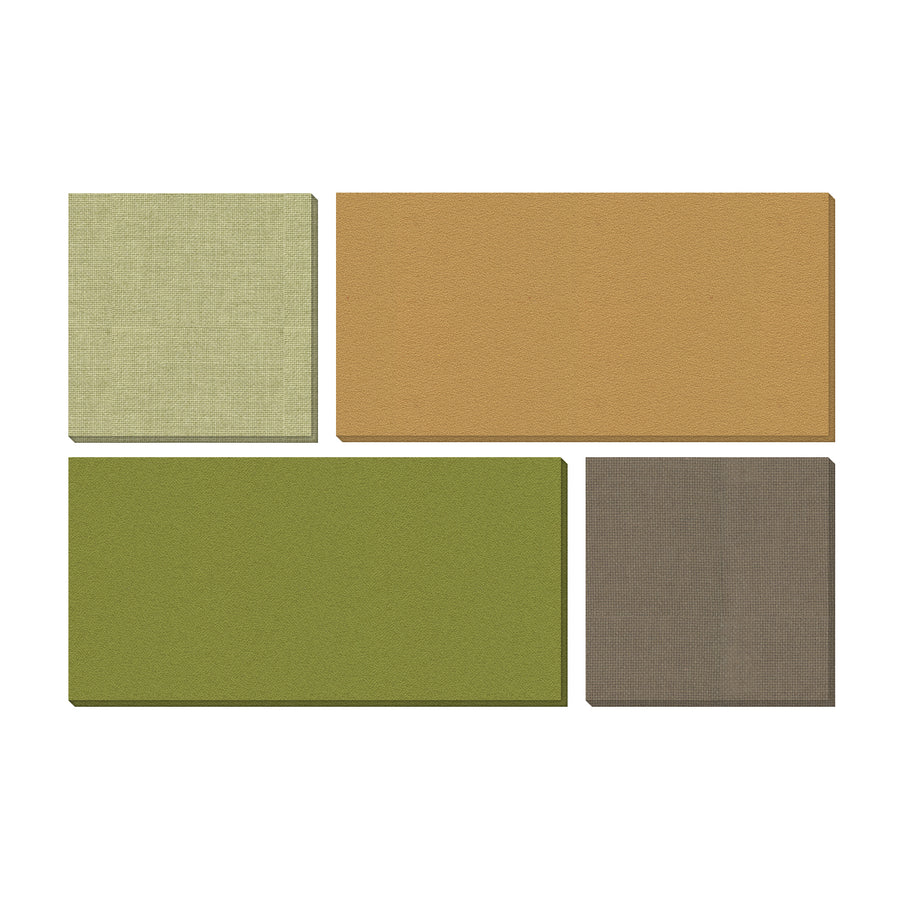

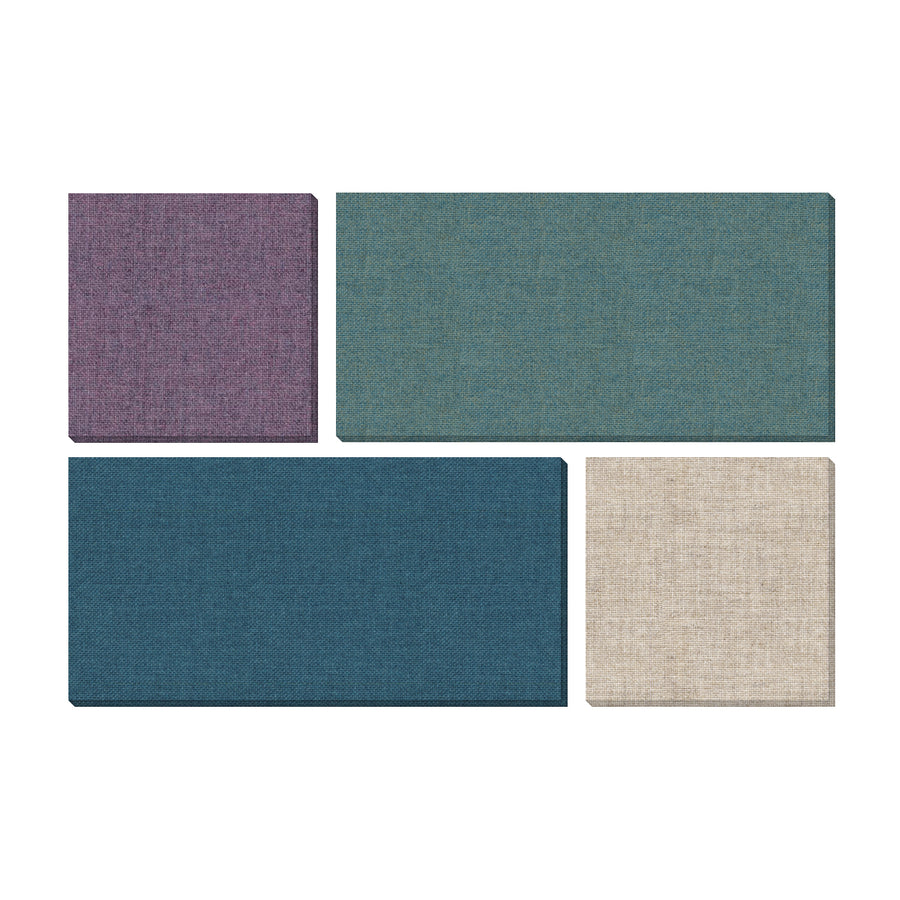

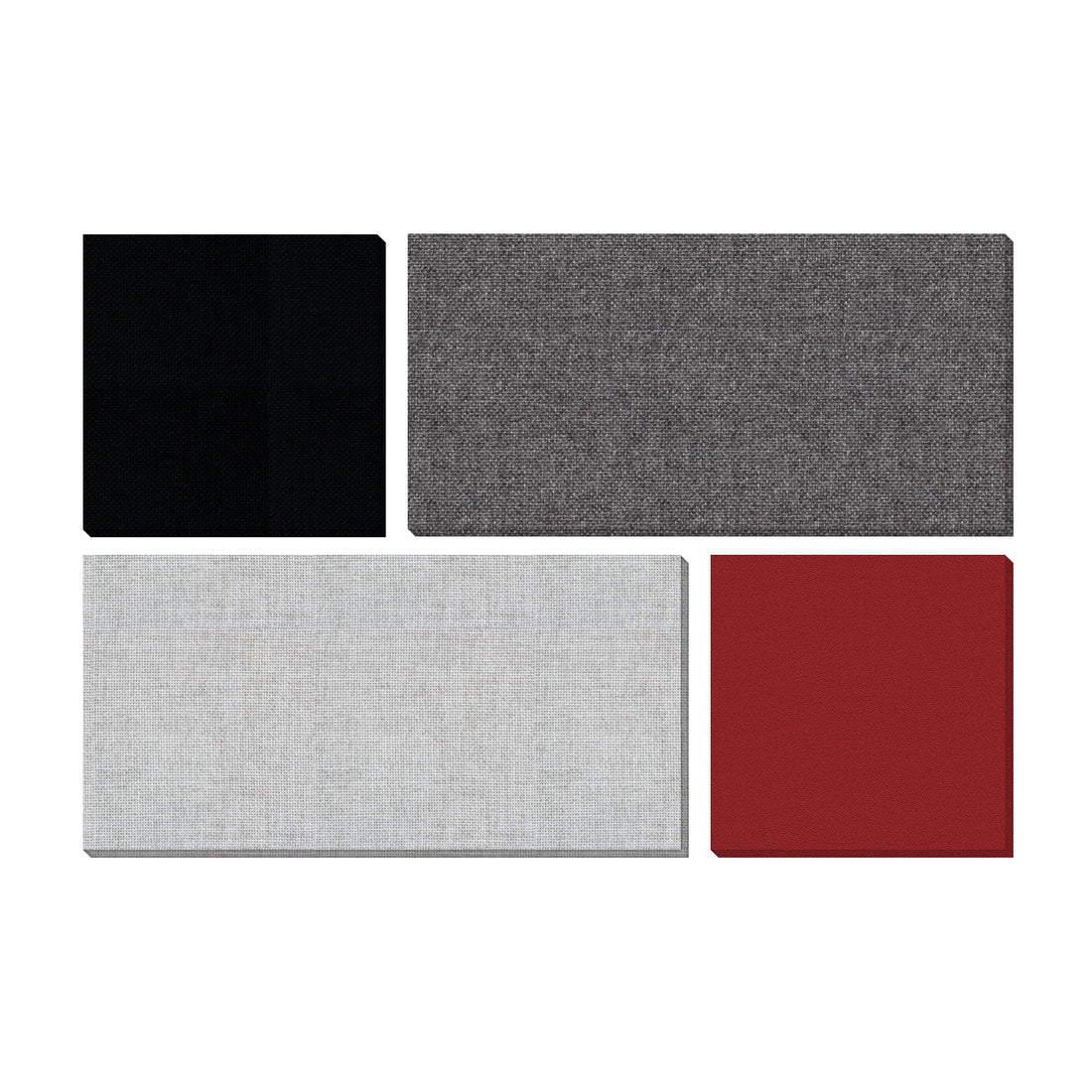

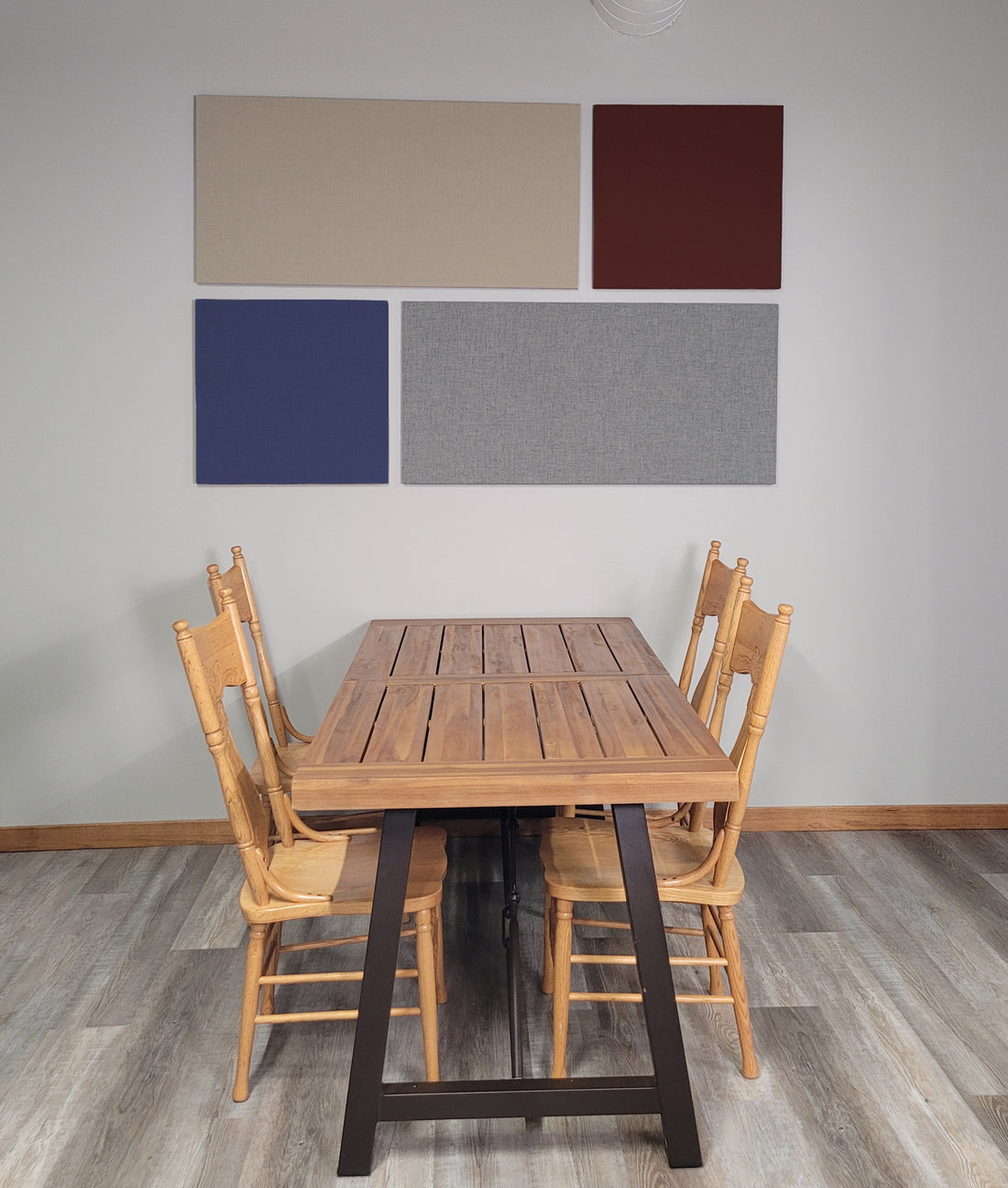

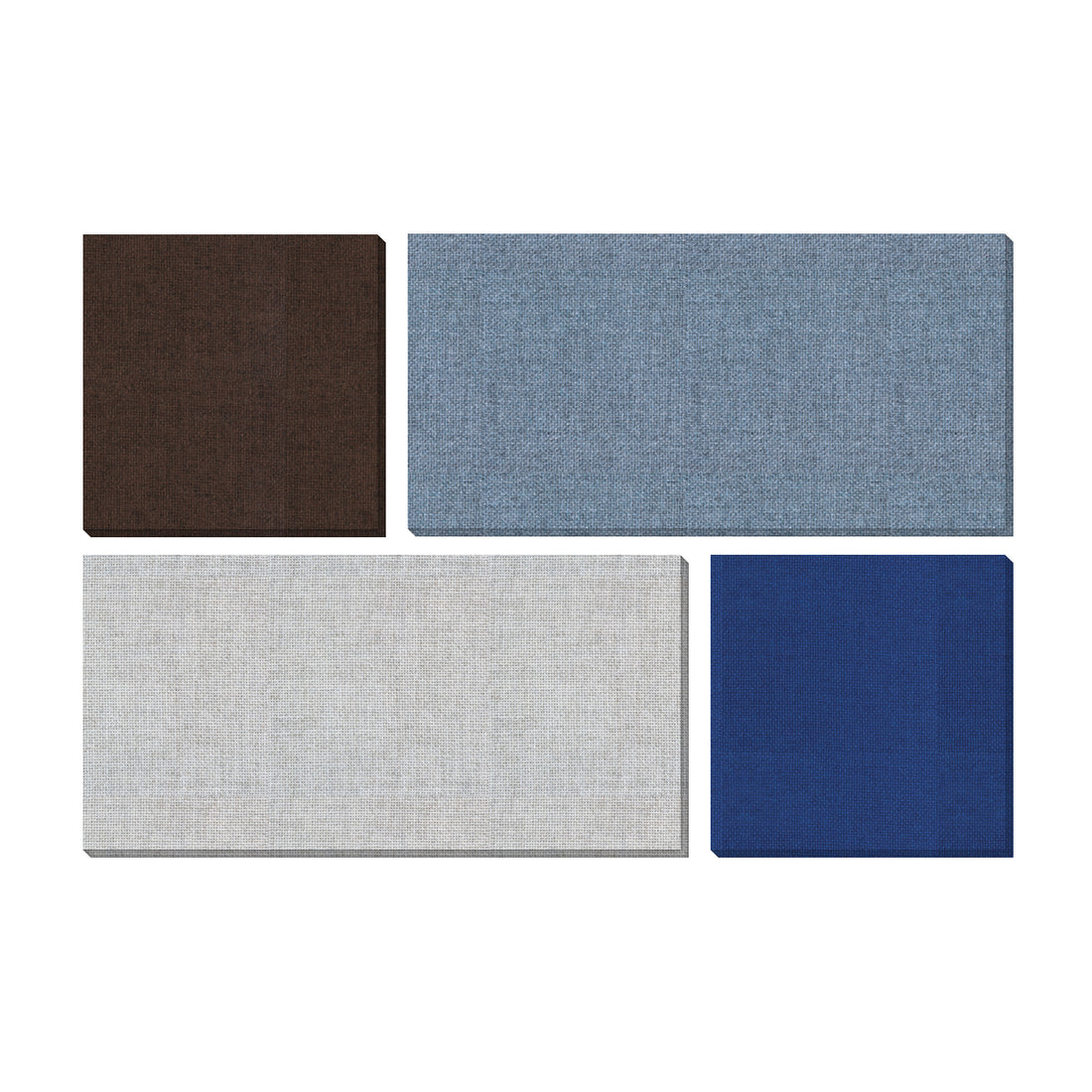

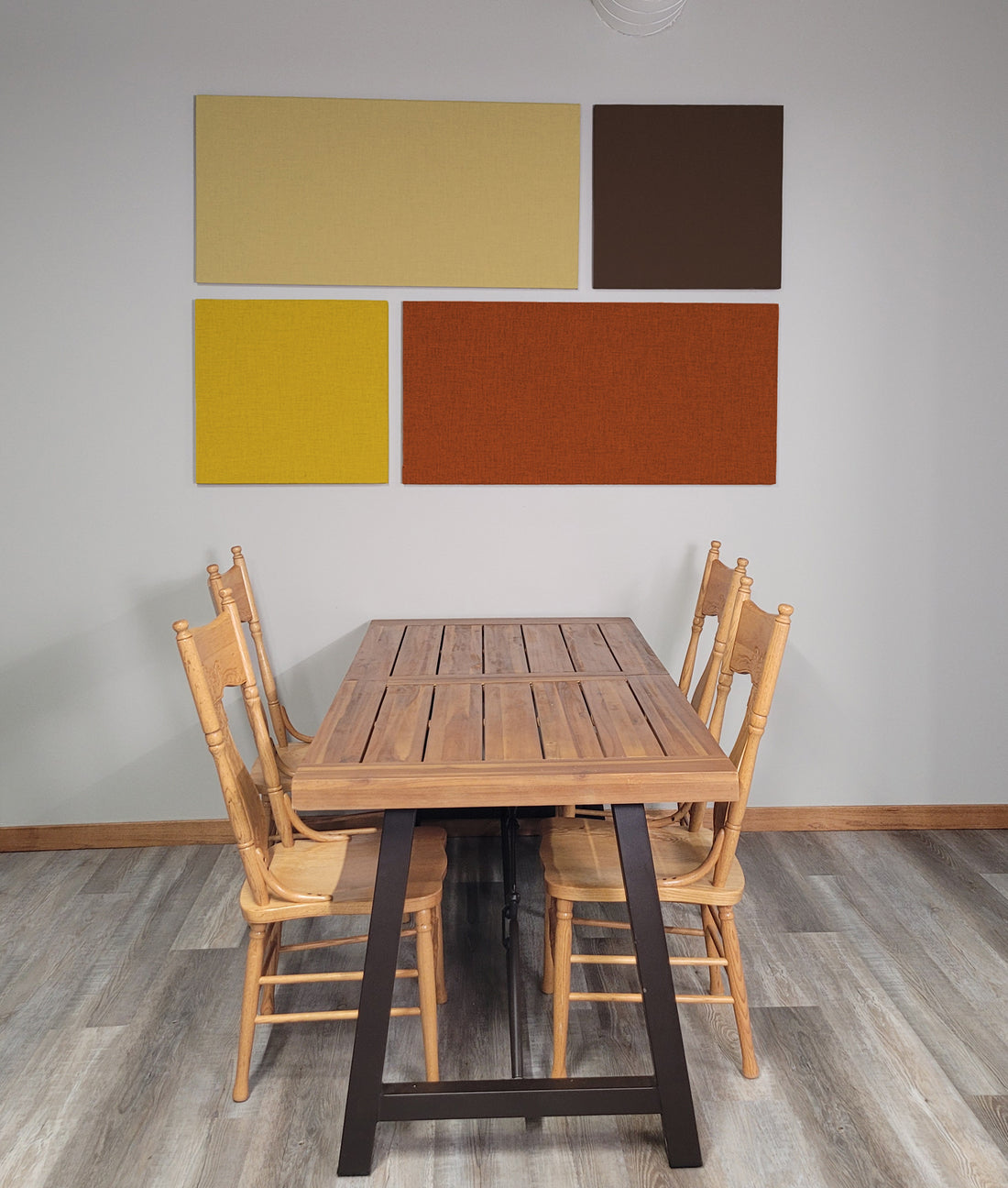

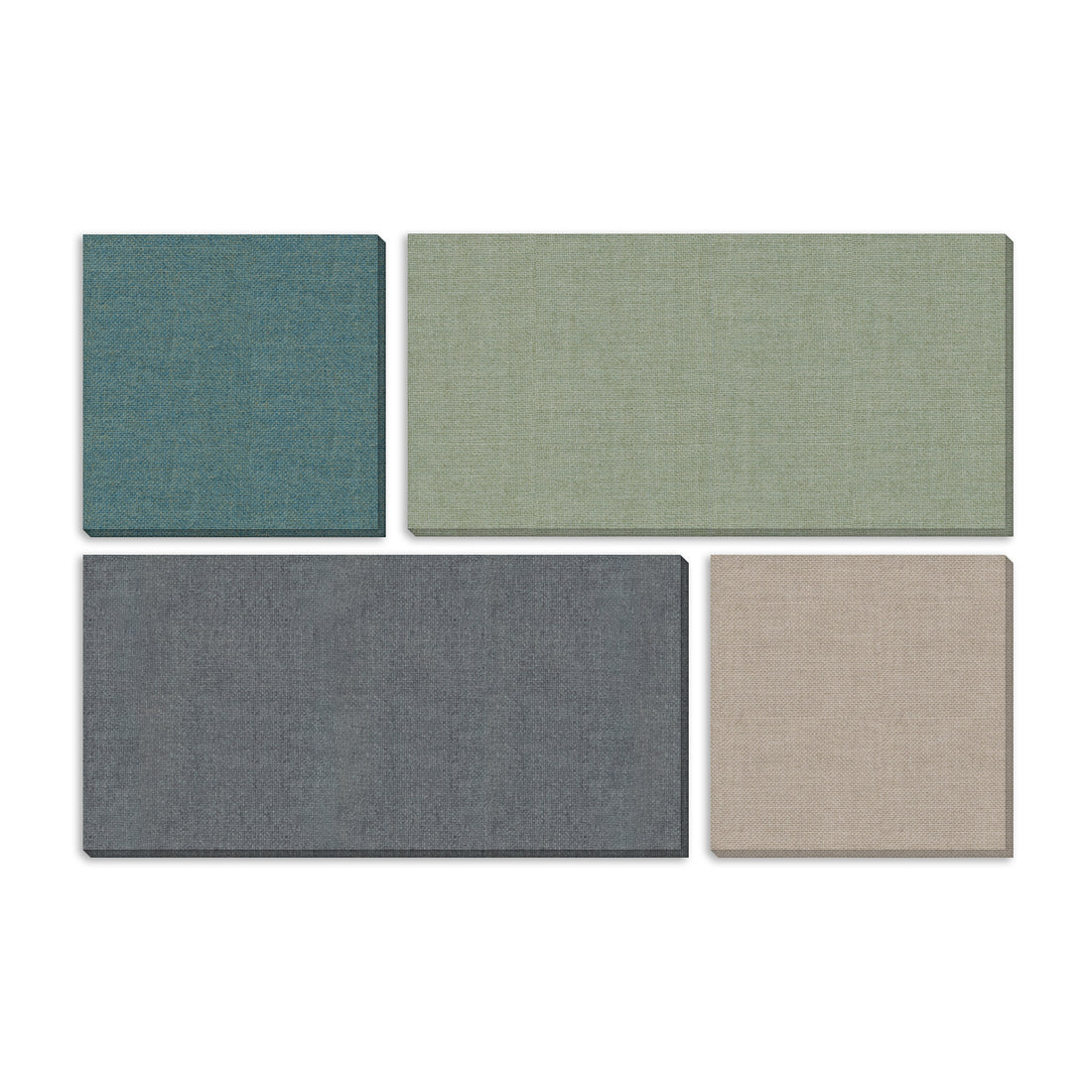

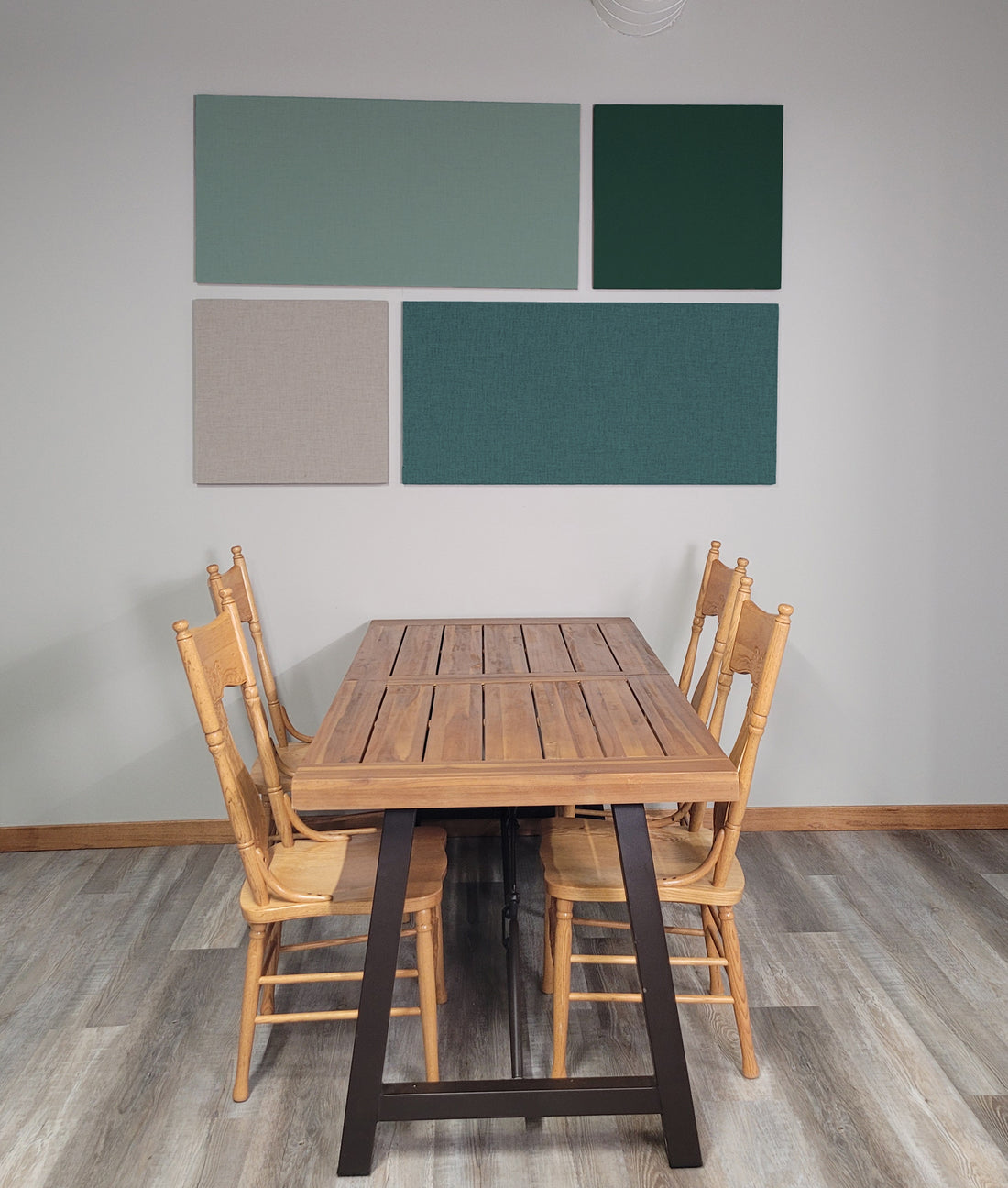

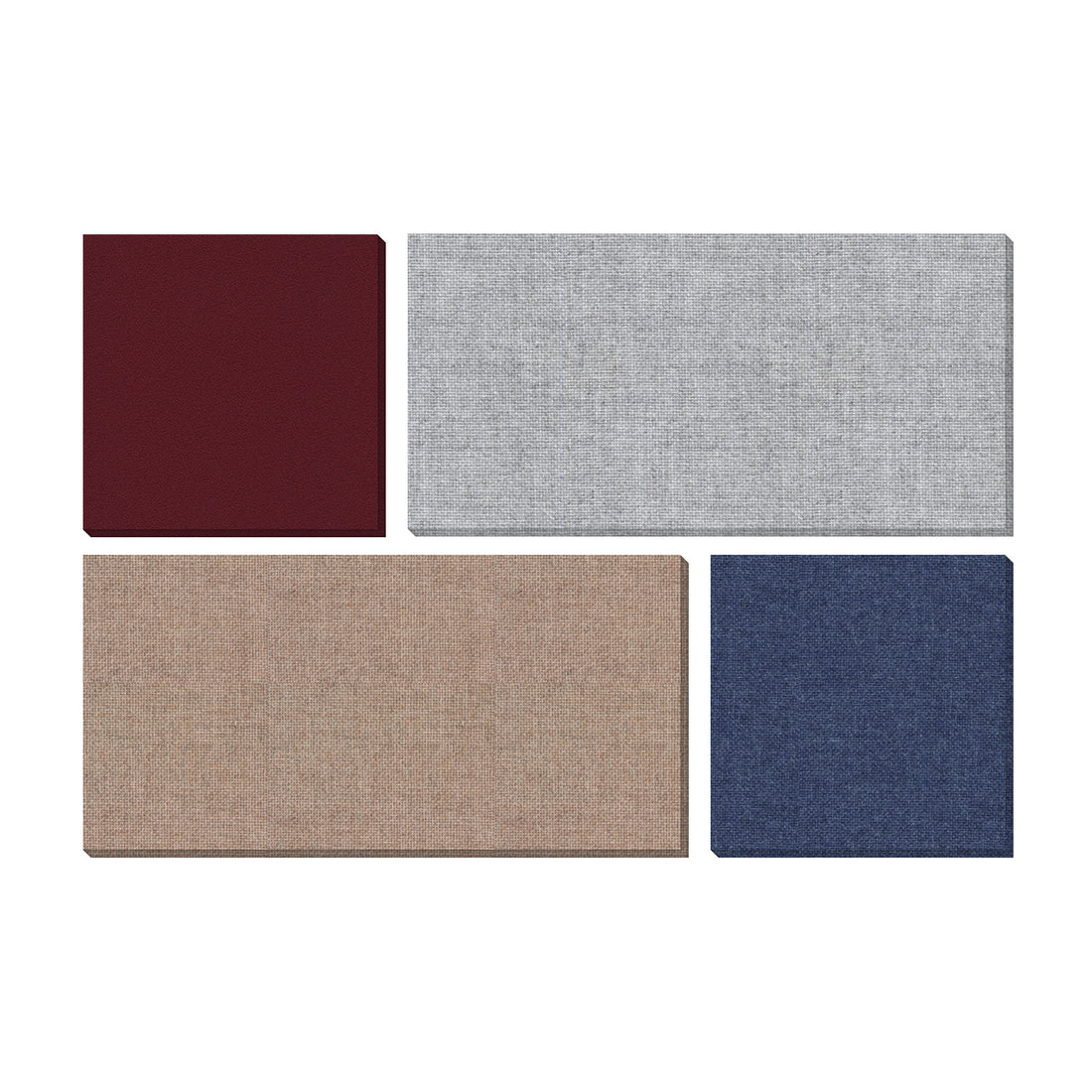

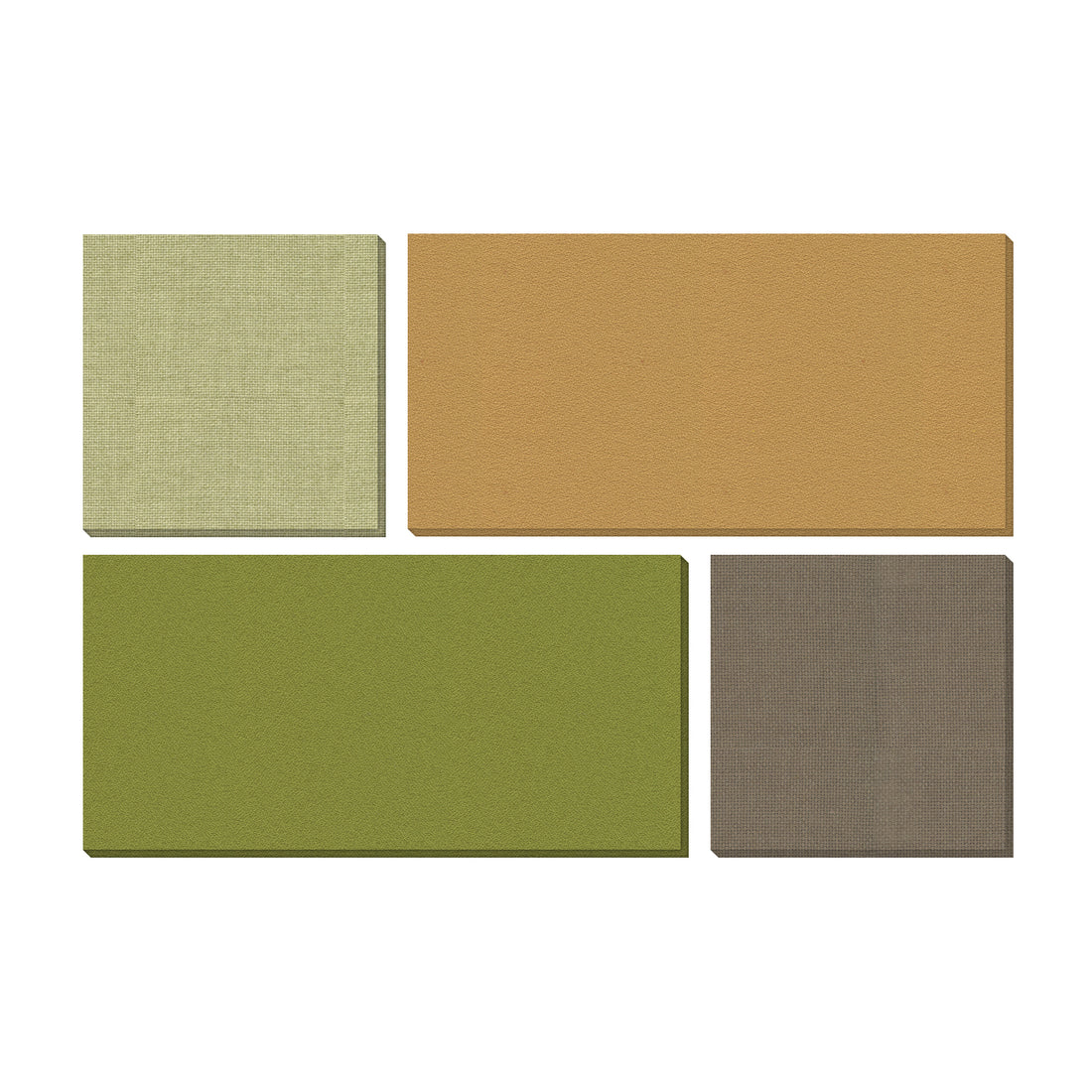

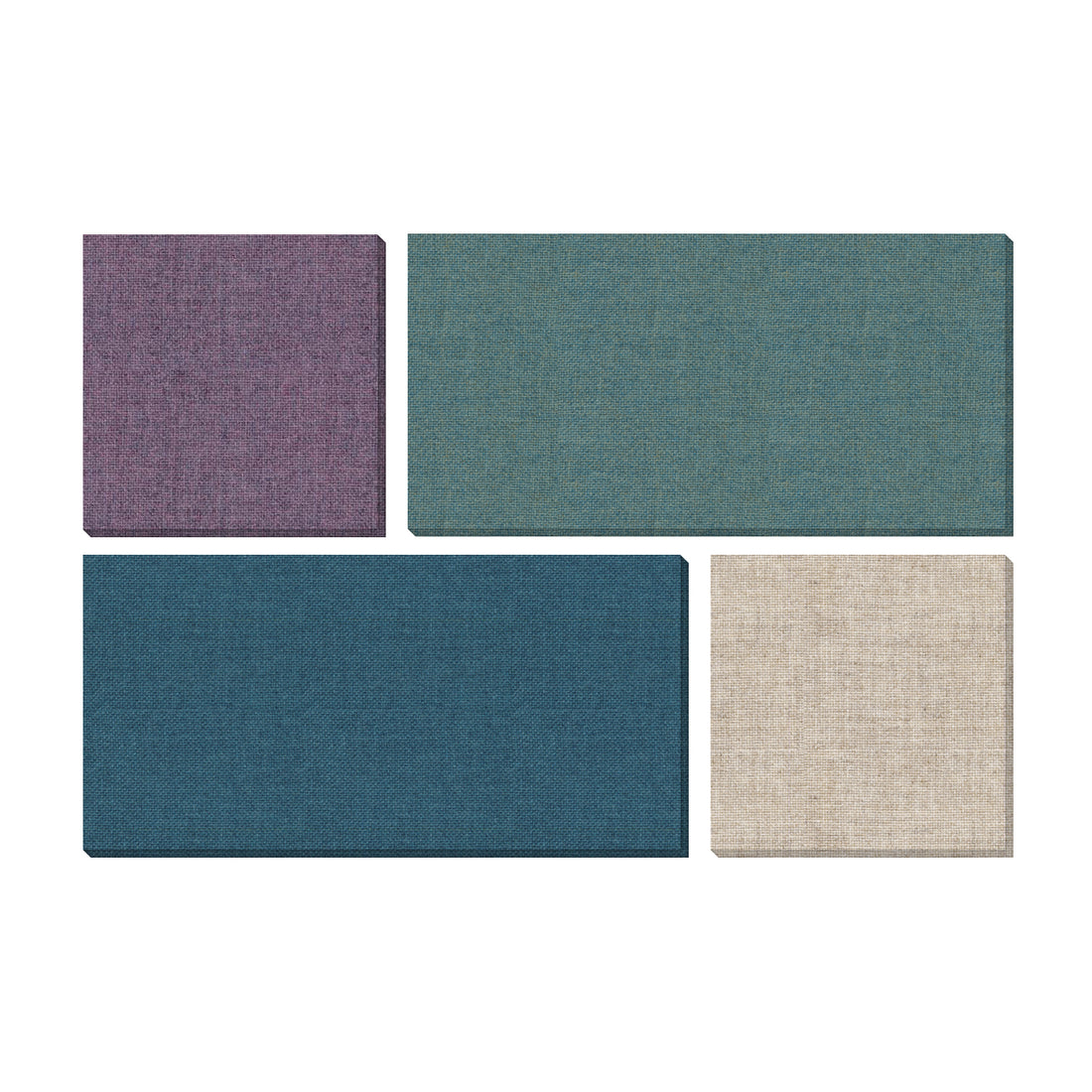

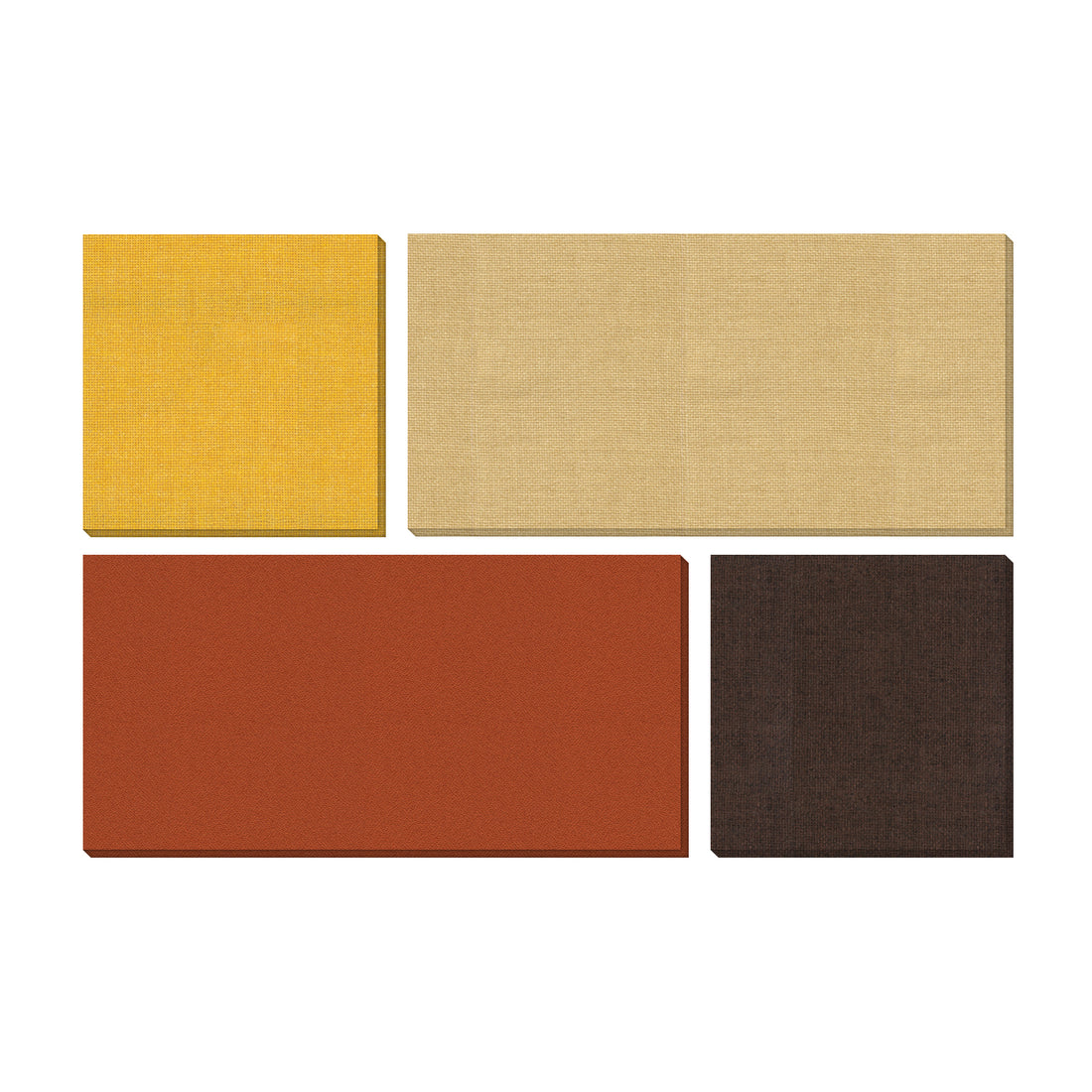

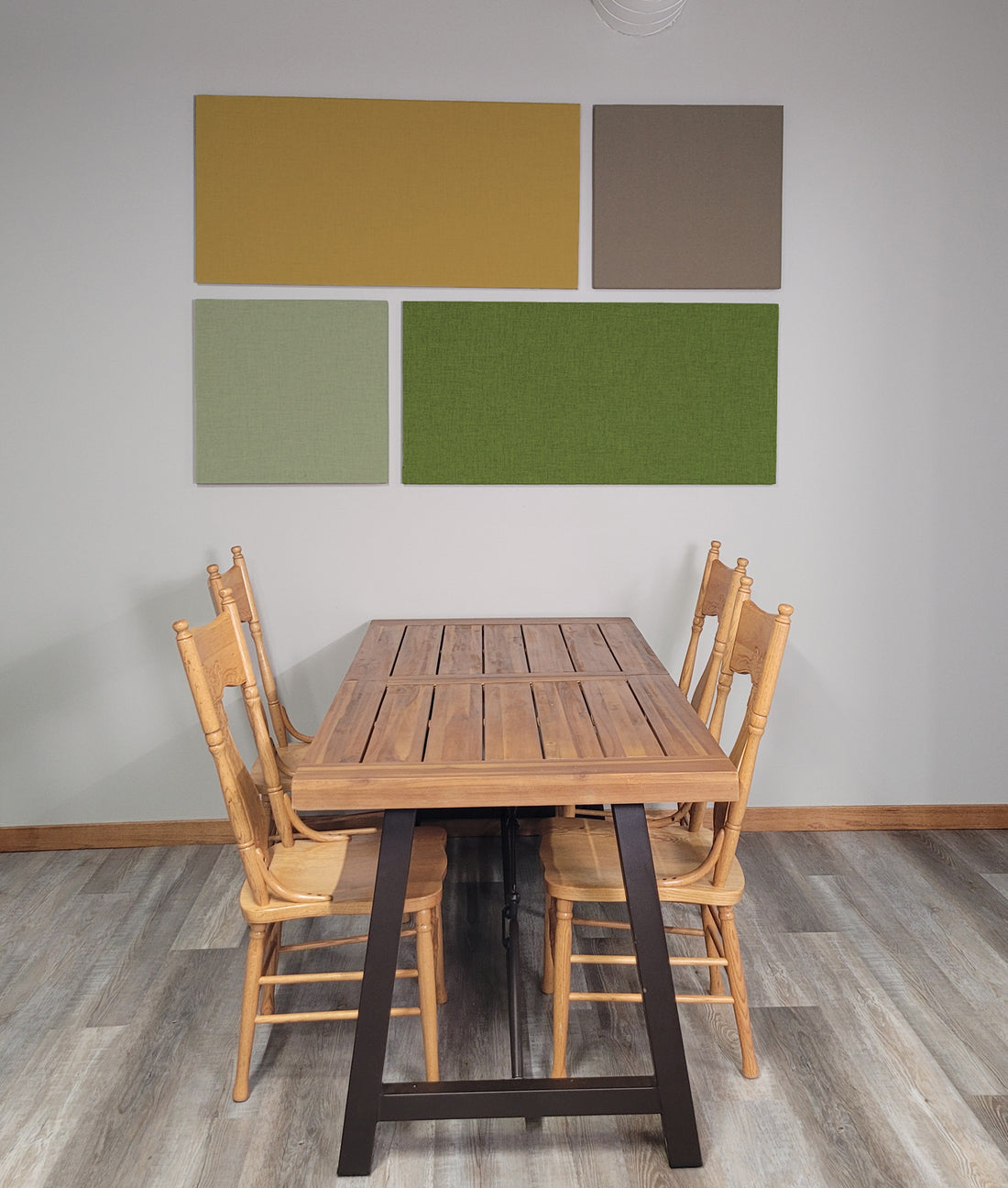

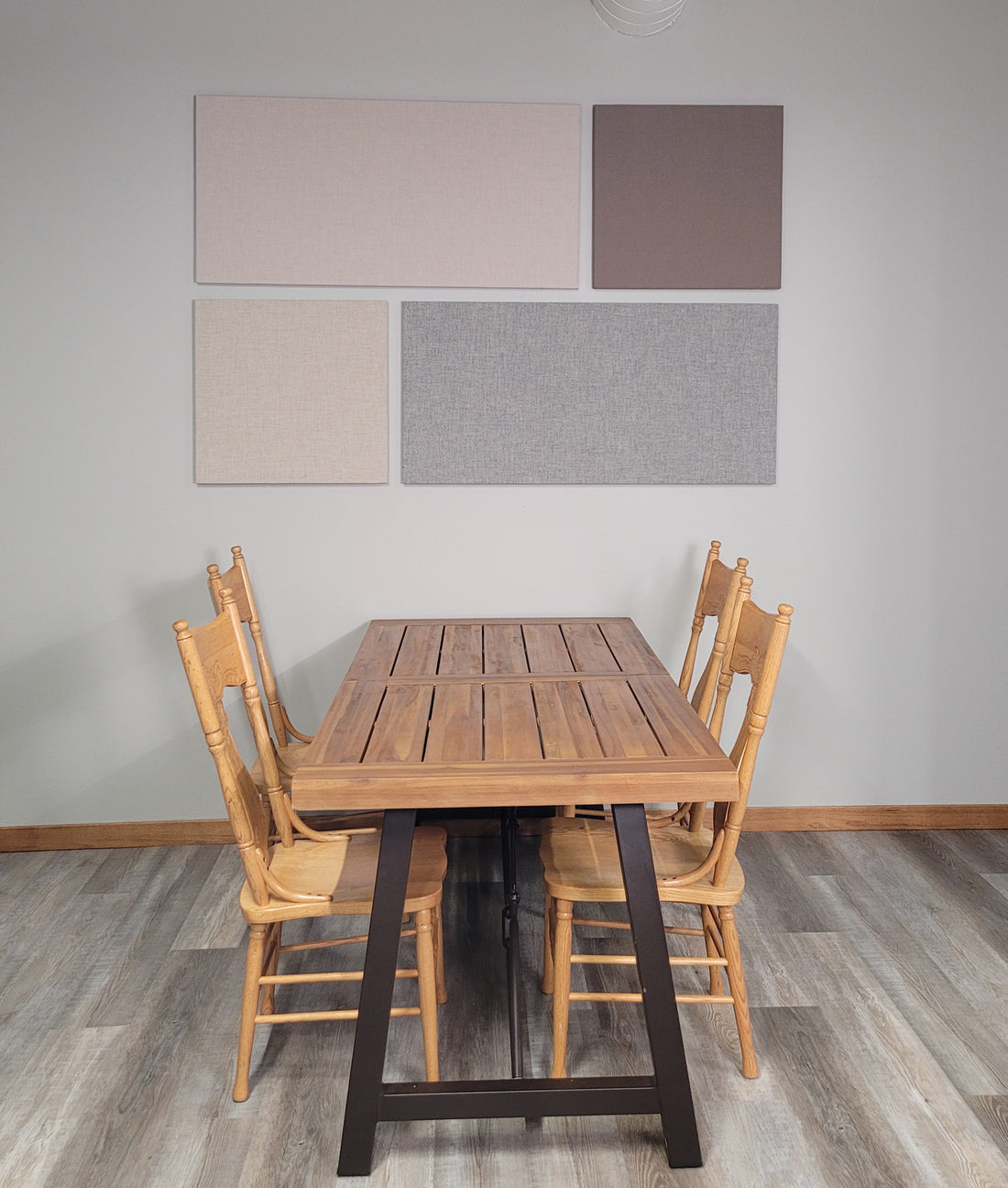

Lessen sound levels and echoes in your home, office or any large room with the attractive Square Acoustic Panel Kit. The professional quality panels can be hung on your walls or from the ceiling. Each Mondrian Acoustic Panel Kit includes 4 panels, 2 squares and 2 rectangles, for a total of 24 square feet of noise absorbing coverage. The 1” thick panels have an NRC rating of 0.85 on a 0.0-1.0 scale, 1.0 being complete sound absorption. The fabric we use in our eco-friendly panels is 100% recycled plastic and our fiberglass has 61% recycled content. 10 color combinations available.
Coverage: 24 square reet per kit
Dimensions: Squares are 24” x 24” x 1”, 2 pieces per kit
Rectangles are 48” x 24” x1”, 2 pieces per kit
Weight: the weight of the kit is 16 lbs.
Use our Acoustic Panel Calculator to estimate the number of panels your room will need.
Acoustic Panel Kits are available in:
- A variety of trendy colors. Custom colors are available by request.
- A variety of shapes including circles, right triangles, hexagons, squares, Diamond Layer kit (square and triangles), and Diamond Theme kit (squares).
Kits are:
- Easy to install with the included wall mounting clips, a ruler, level, and screwdriver
- 1” thick eco-friendly 61% recycled fiberglass core covered with 100% recycled polyester Class 1 flammability woven fabric.
- NRC rating is 0.85 on a 0.0-1.0 scale
- Core and fabric made in the USA
Installation Video
FR701 – Coarse woven fabric
100% post-consumer recycled polyester
NRC value .95
Colorfast to Light Grade 4 min @ 40 hrs
Colorfast to Crocking Grade 4 min dry and Grade 3 wet
Breaking strength 150 lbf min. warp and fill
Flammability Class I or A
Proudly woven in North America
Anchorage – Fine woven fabric
65% pre-consumer recycled polyester
35% post-consumer recycled polyester
NRC value .85
Colorfast to Light Grade 4 min @ 40 hrs
Colorfast to Crocking Grade 4 min dry and Grade 3 wet
Breaking strength 275 lbf min. warp and fill
Pilling Resistance Class 4 min
Flammability
CA Technical Bulletin 117-2013 Section 1
NFPA 260 Fabric Classification – Class I
ASTM E84 Class I or A
Abrasion 250,000 double rubs min, cotton duck
Proudly woven in North America
Other fabric options available upon request. Contact Us
More information available about your fabric choices
Wall mounting hardware - included
8 prong impaling clips
Ceiling mounting hardware - available for additional cost
Rotofast Cloud Anchors (hang from ceiling)
Rotofast Snap On Anchors (directly to ceiling)
ADW Panel Calculator
Calculate the recommended number of panels based on your room size to provide optimum sound control.
Easy DIY Installation Instructions
Hanging our acoustic panels is as easy as hanging a picture on the wall. It’s not necessary to pay an installer. Your ADW panels come with quick install instructions and strong impaling clips for mounting the panels securely to your wall(s) in minutes.
