Acoustic Design Works Acoustic Panel Square Kit - 5 Pieces
Acoustic Design Works Acoustic Panel Square Kit - 5 Pieces

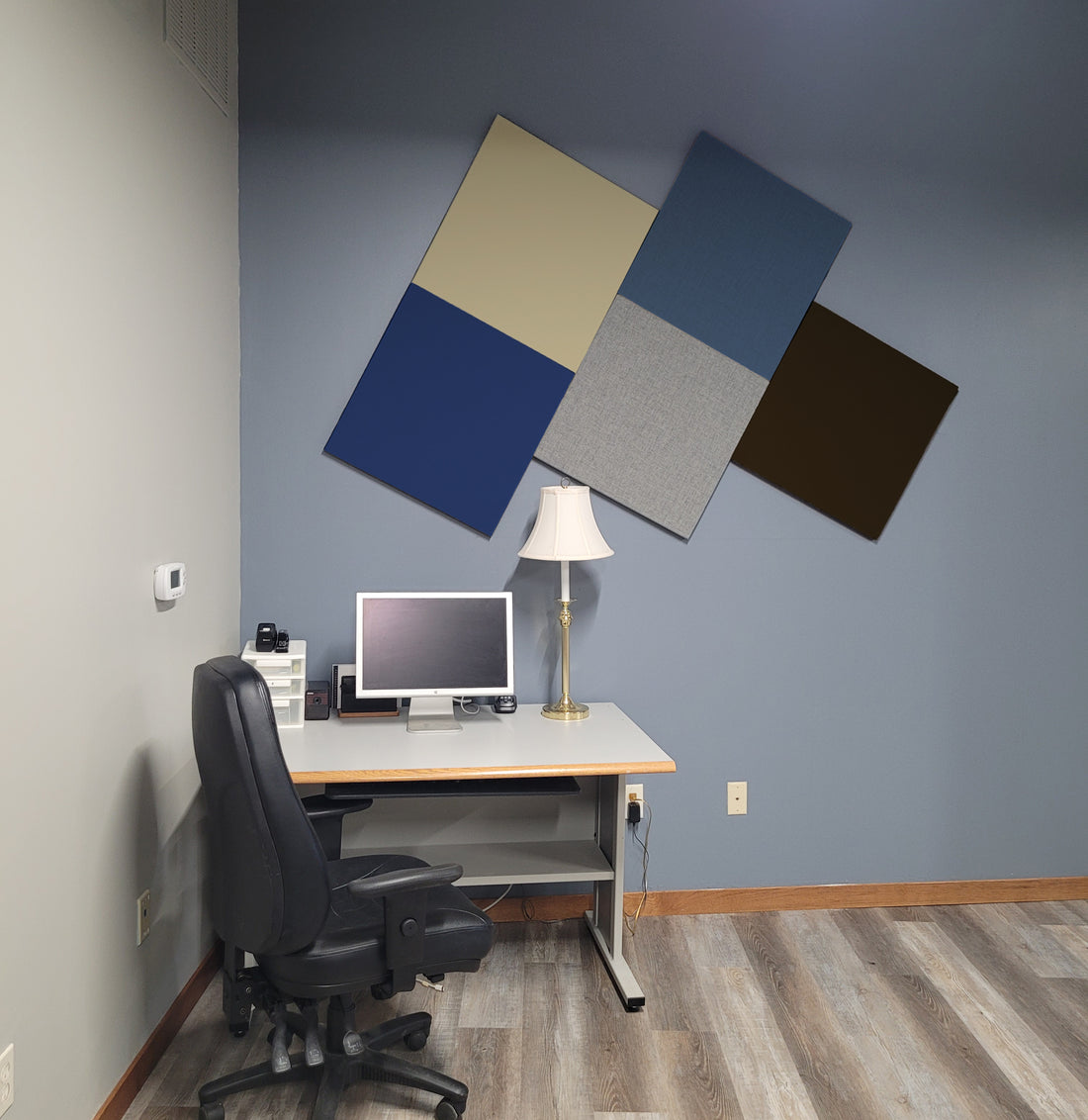

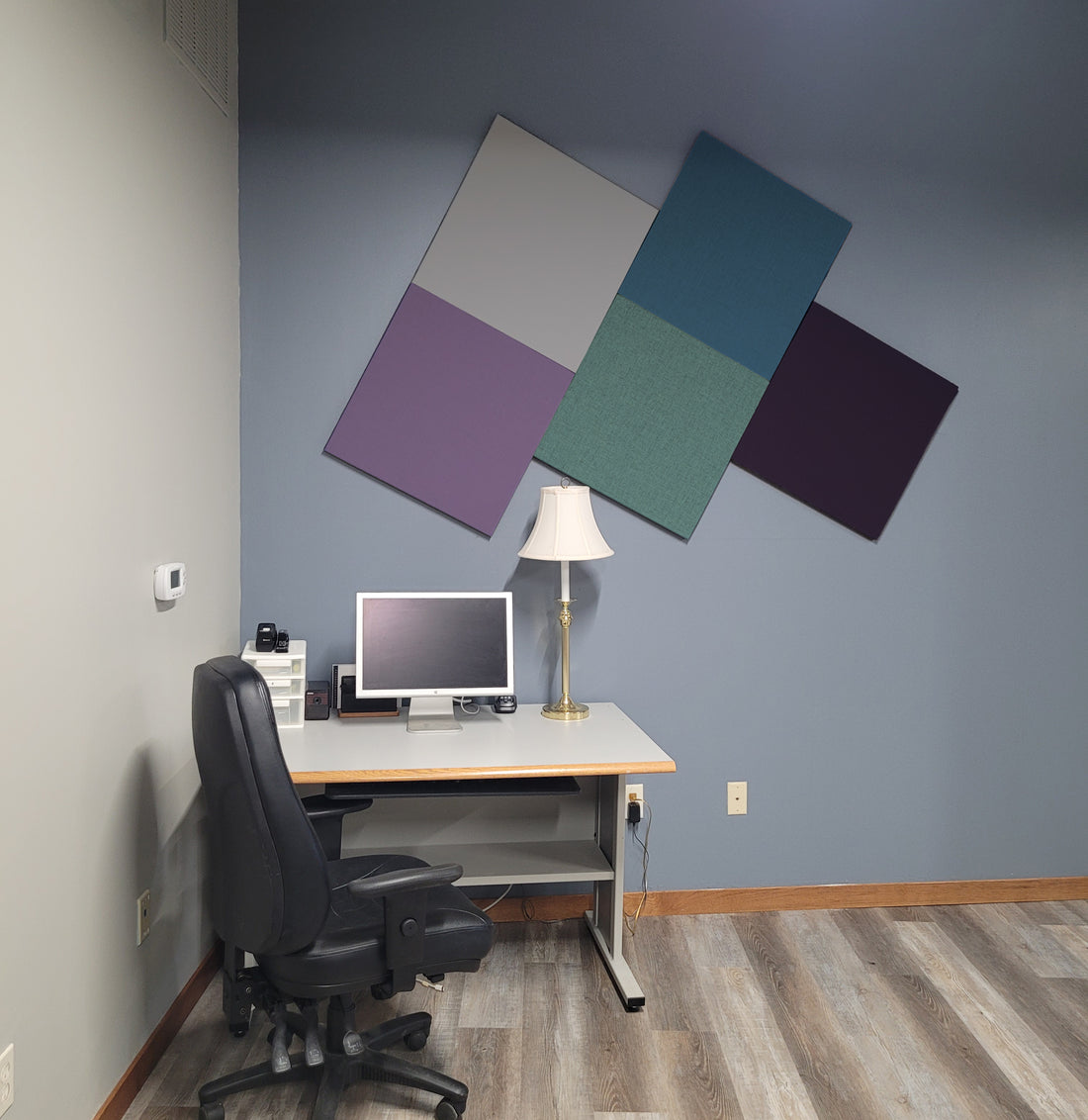

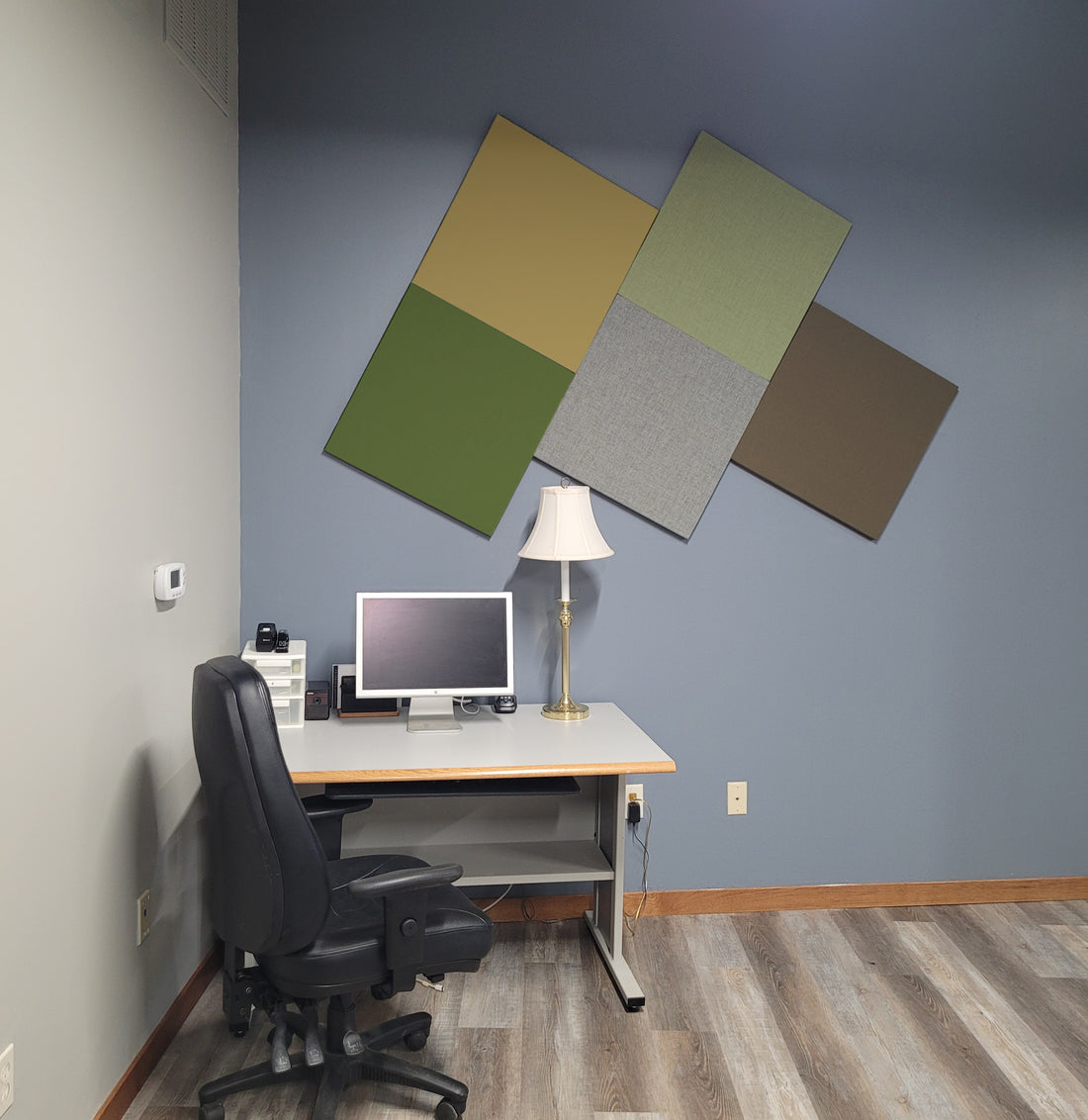

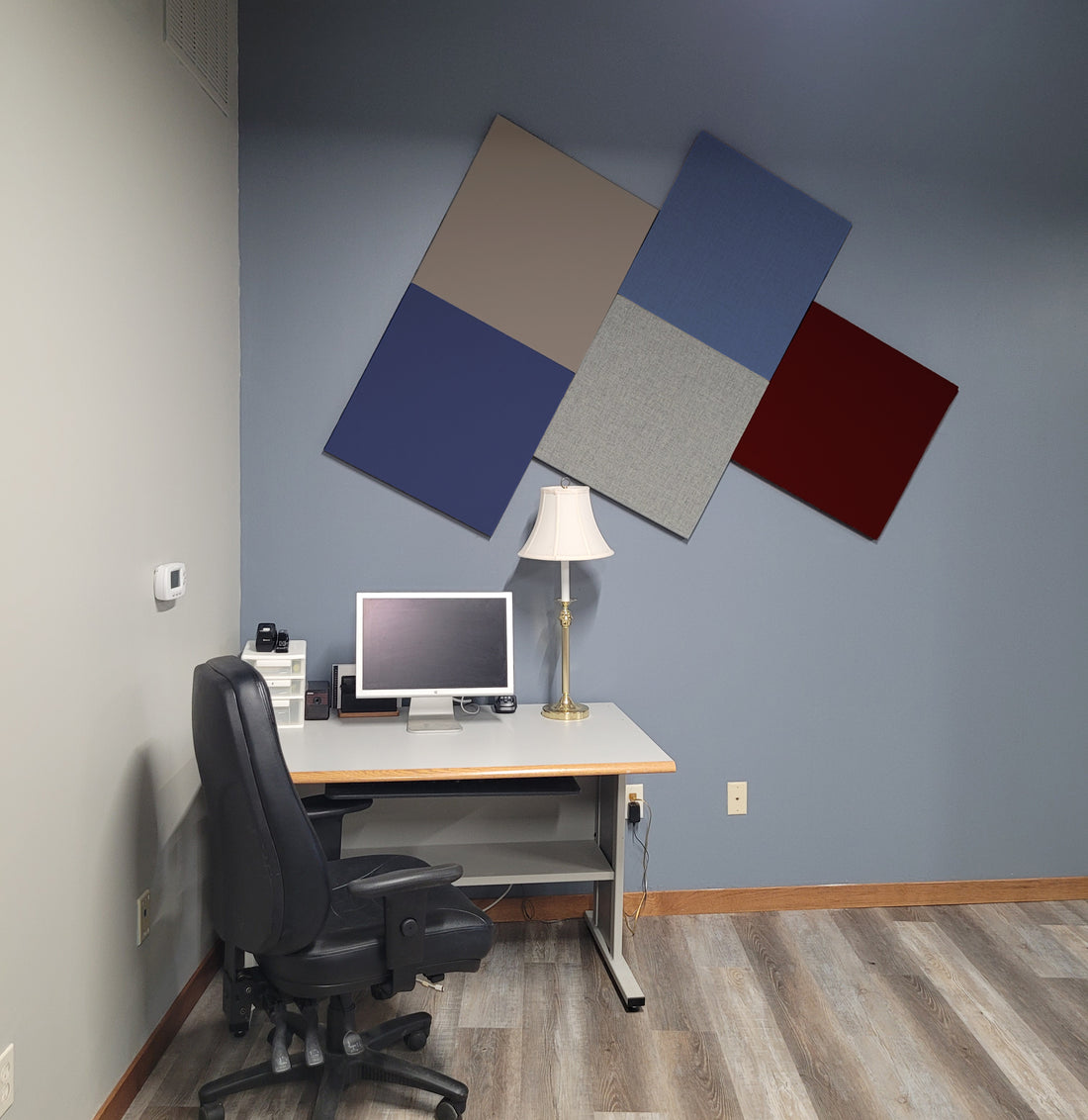

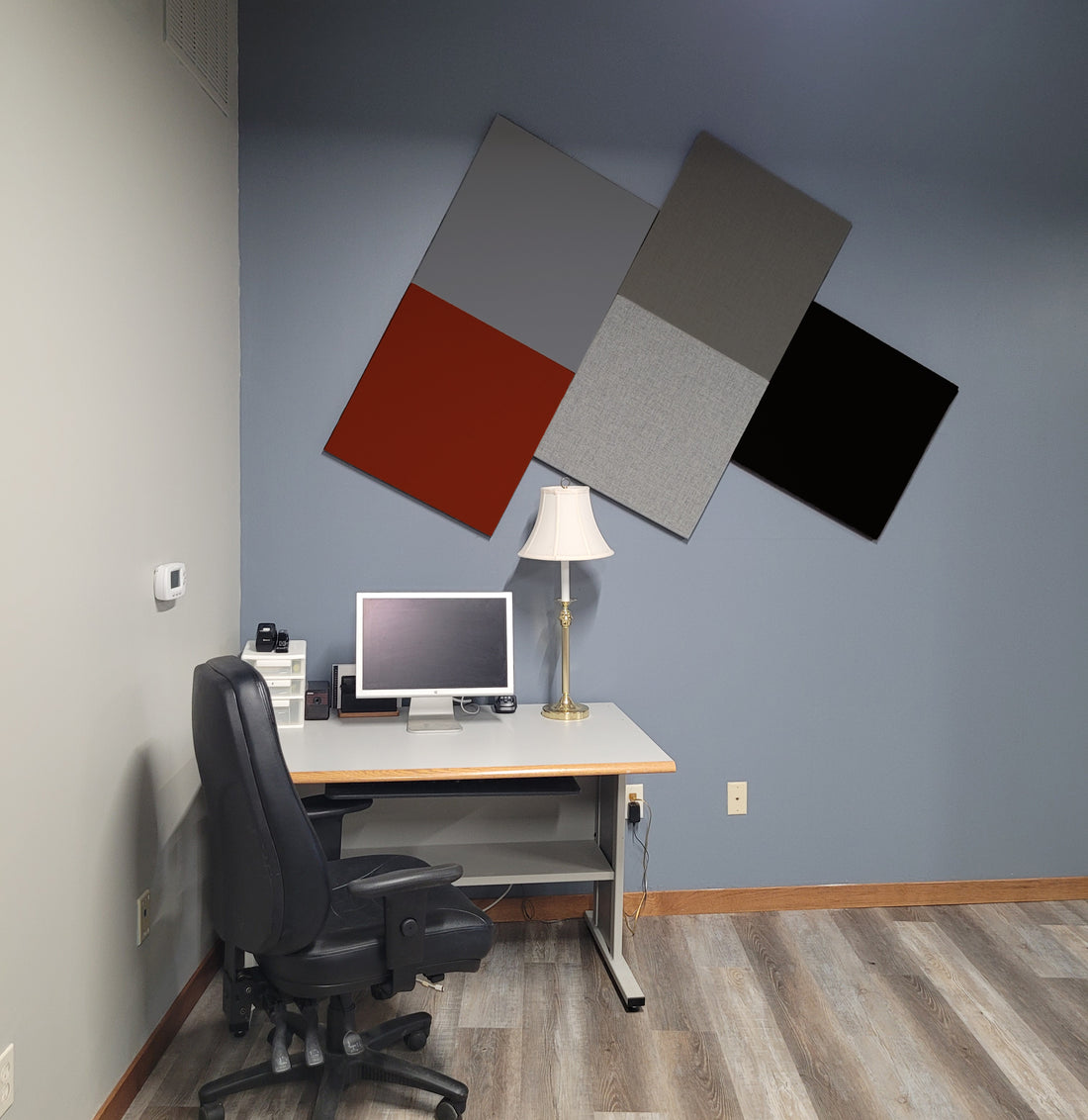

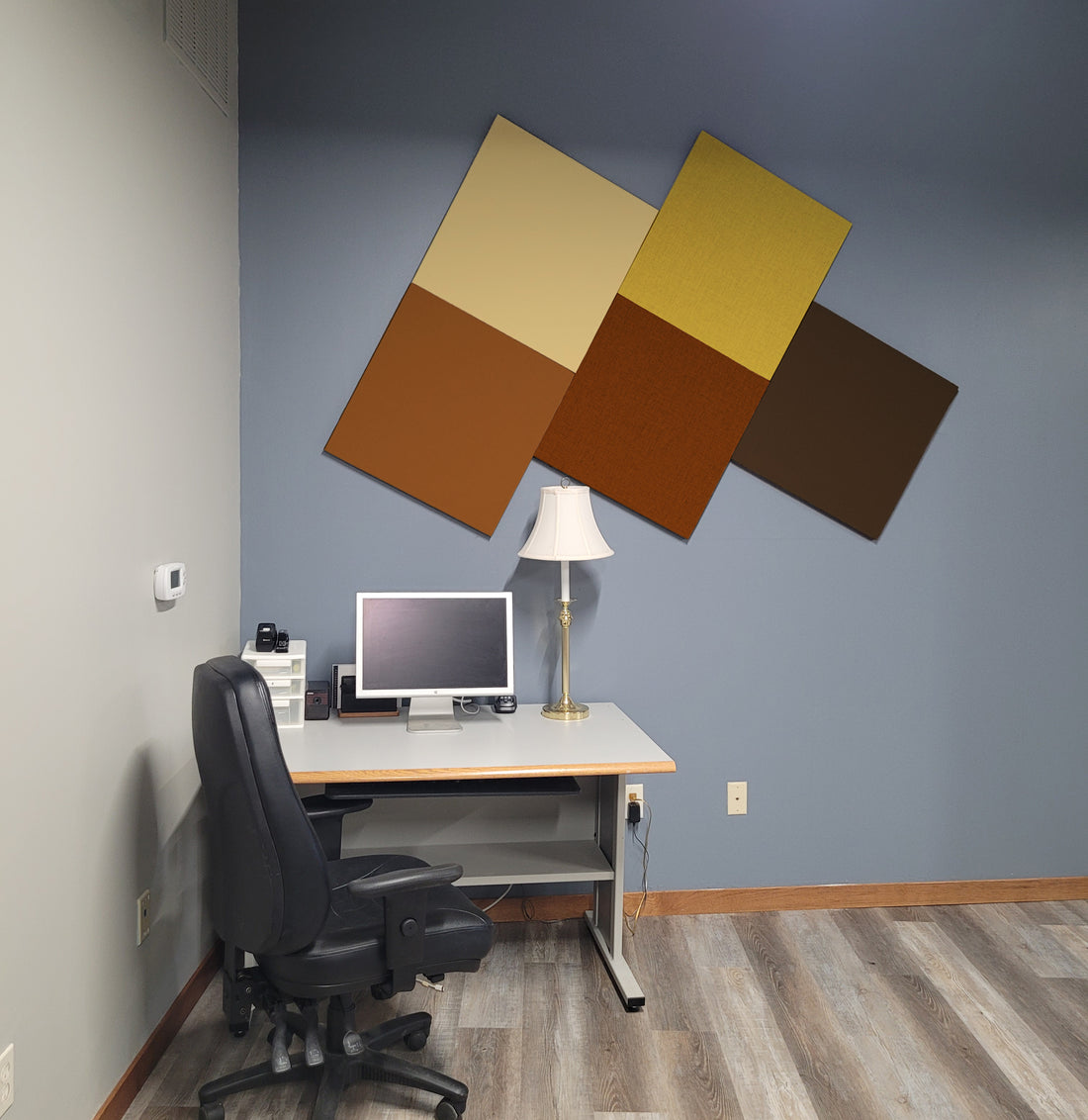

Reduce echoes and noise levels in your home or office with the attractive Square Acoustic Panel Kit. The panels can be hung on your walls or from the ceiling. Each Square Acoustic Panel Kit includes 5 panels for a total of 20 square feet of sound absorbing coverage. The professional quality 1” thick panels have an NCR rating of 0.85 on a 0-1.0 scale, 1.0 being complete sound absorption. The fabric we use in our eco-friendly panels is 100% recycled plastic and our fiberglass has 61% recycled content. 8 color combinations available.
Coverage: 20 square feet per kit
Dimensions: each square is 24” x 24” x 1”, 5 pieces per kit
Weight: each square is 3 lbs., the weight of the kit is 15 lbs.
Use our Acoustic Panel Calculator to estimate the number of panels your room will need.

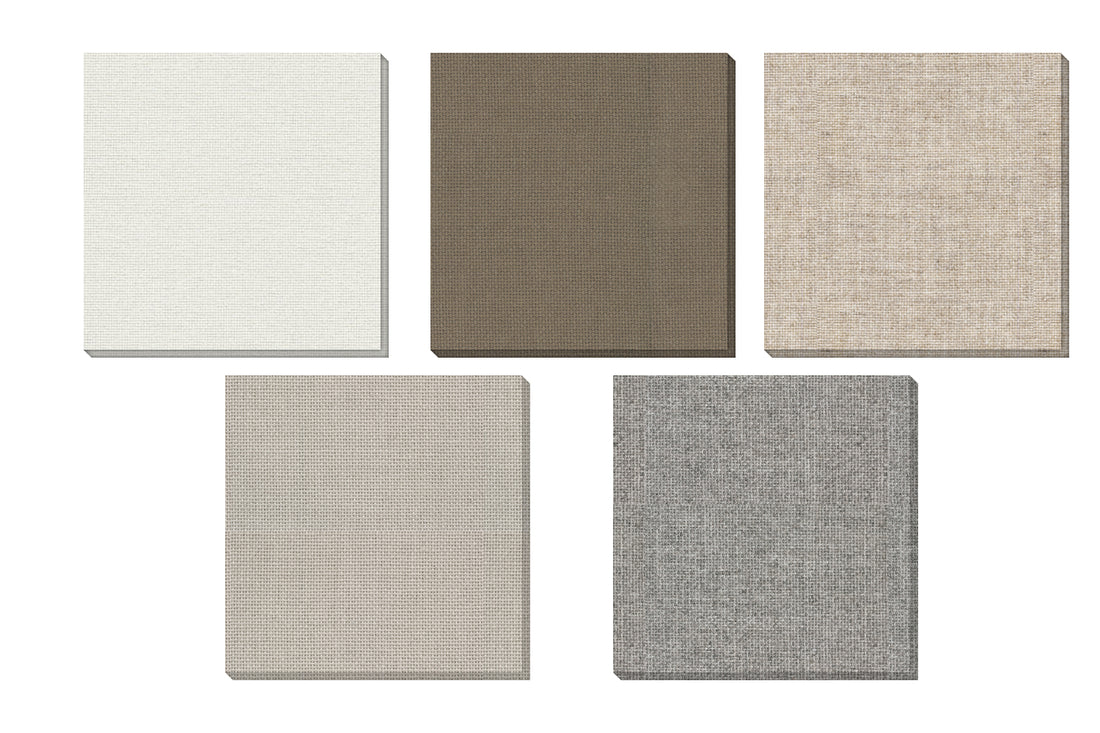

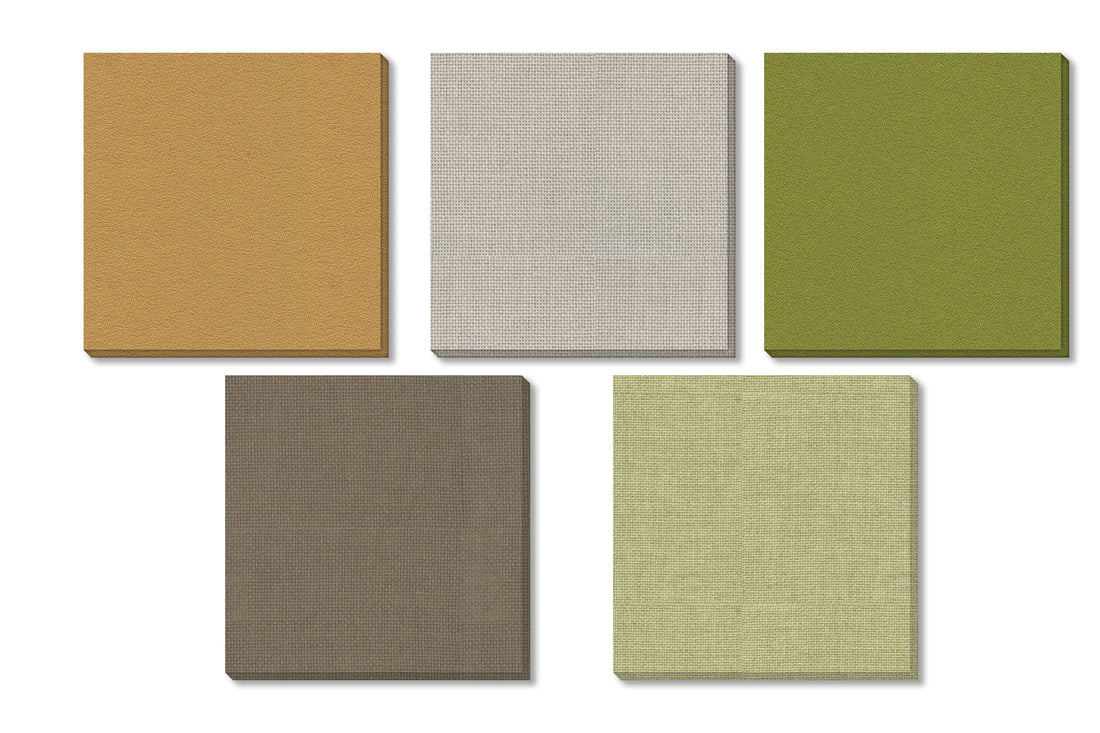

Acoustic Panel Kits are available in:
- A variety of trendy colors. Custom colors are available by request.
- A variety of shapes including circles, right triangles, hexagons, Mondrian kit (rectangles and squares), Diamond Layer kit (square and triangles), and Diamond Theme kit (squares).
Kits are:
- Easy to install with the included wall mounting clips, a ruler, level, and screwdriver
- 1” thick eco-friendly 61% recycled fiberglass core covered with 100% recycled polyester Class 1 flammability woven fabric.
- NRC rating is 0.85 on a 0.0-1.0 scale
- Core and fabric made in the USA

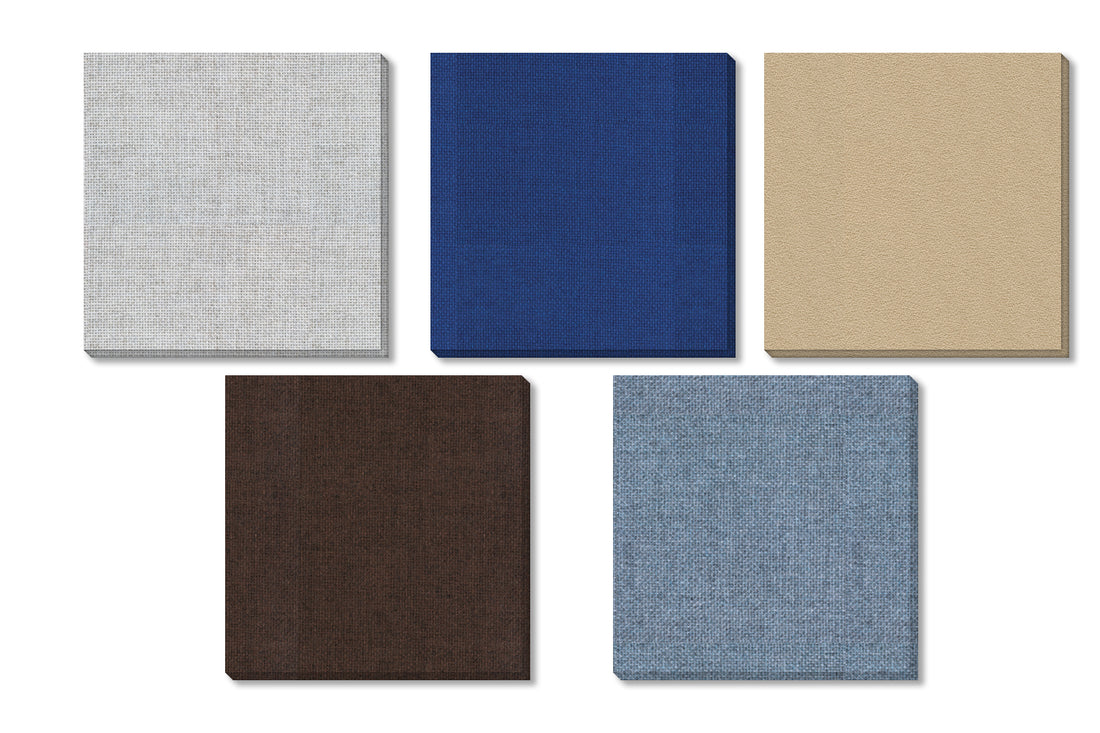

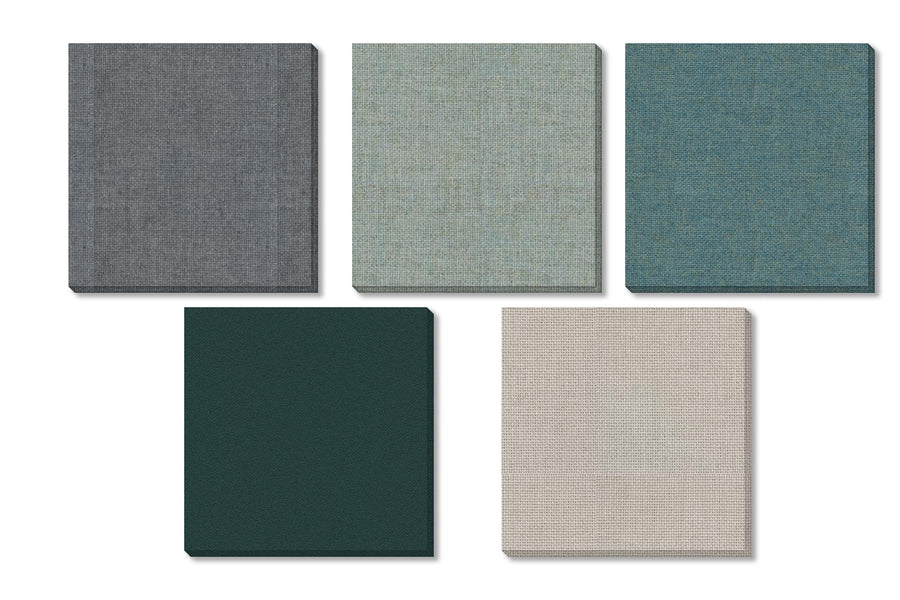

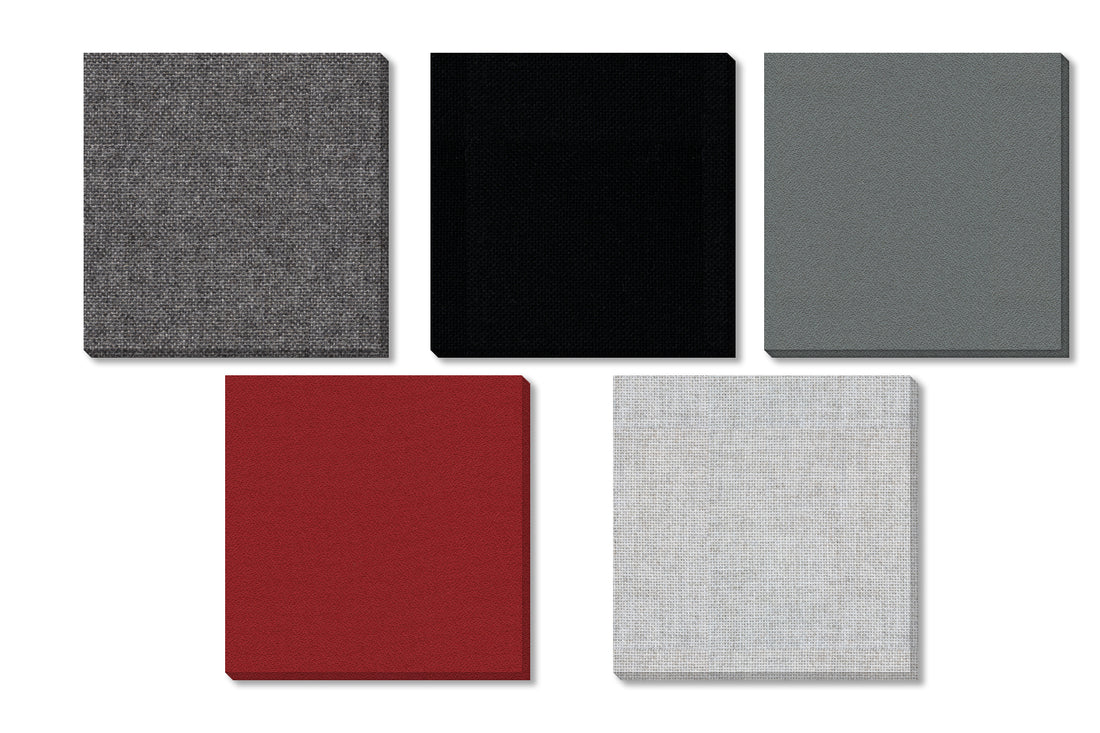

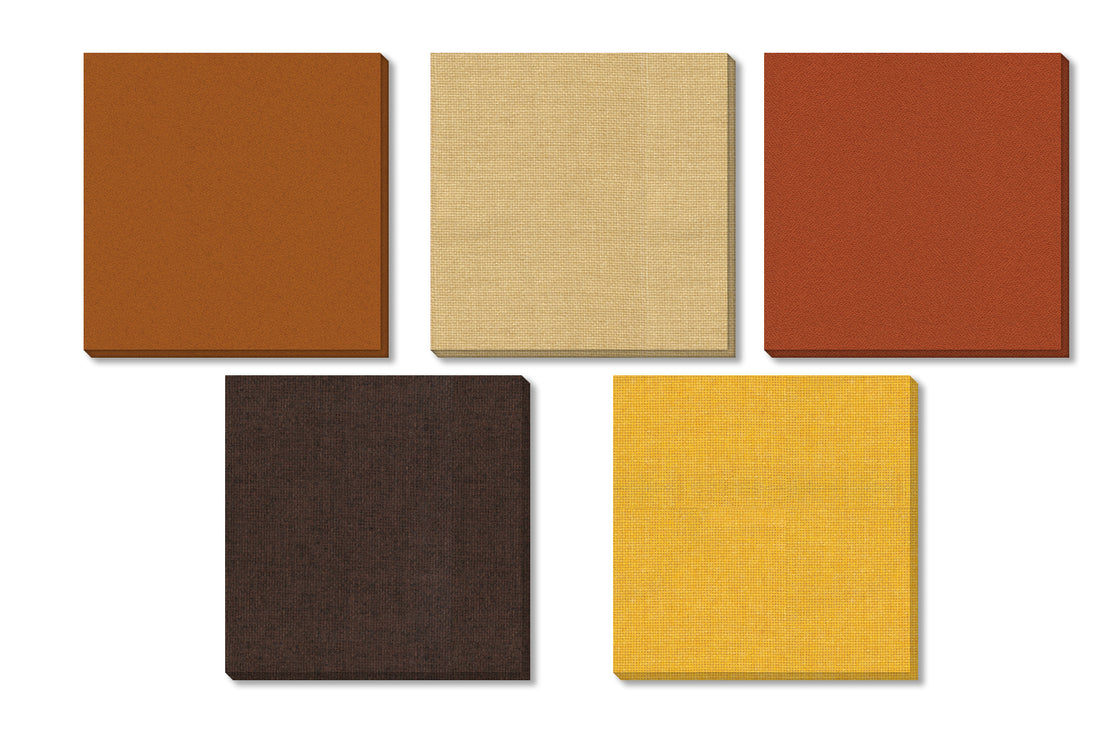

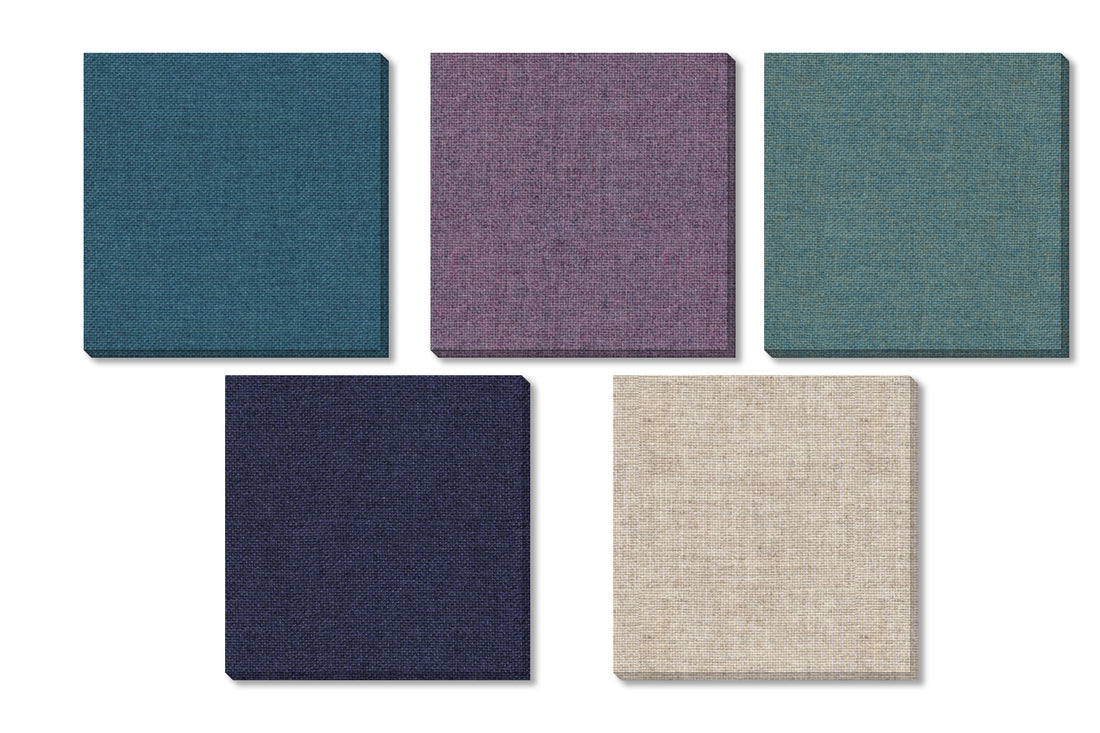

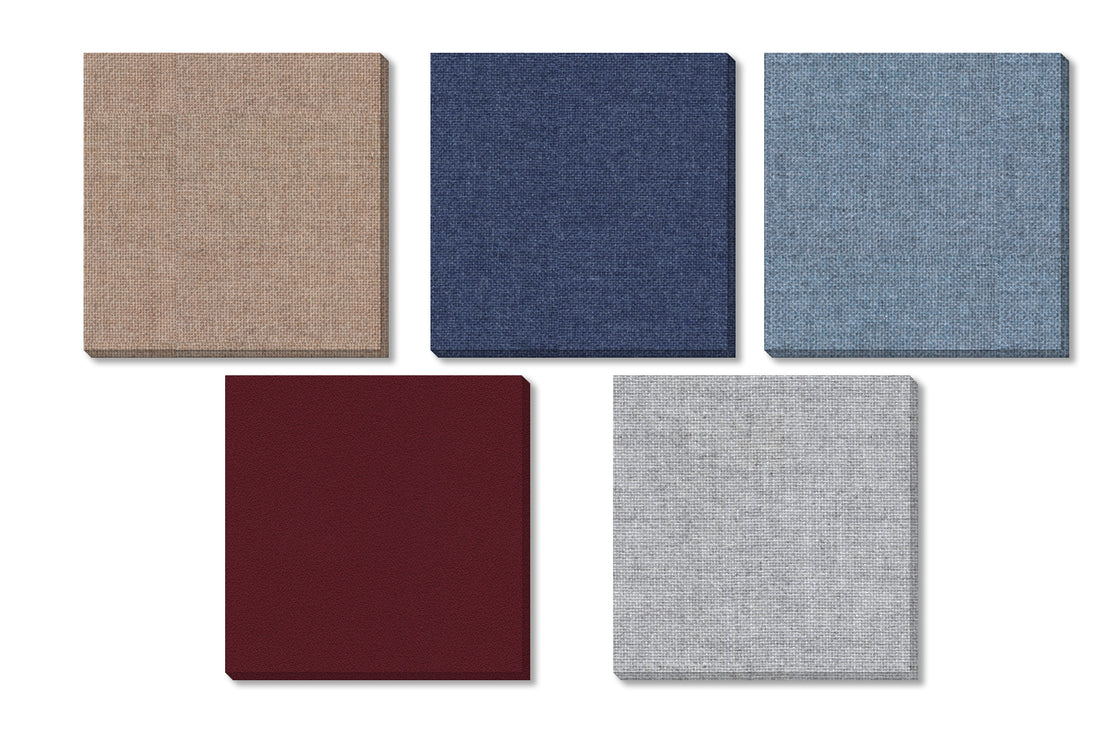

Acoustic Panel kits are available in
- A variety of trendy color kits. Custom colors are available by request
- A variety of geometric shapes including circles, right triangles, hexagons and our Mondrian Kit (two rectangles and two squares)
Kits are
- Easy to install with the included wall mounting clips, a ruler, level, and screwdriver.
- 1” thick eco-friendly fiberglass core covered with recycled polyester Class 1 flammability woven fabric
- NRC ratings between .85 and .95
- Core and fabric made in the USA
Installation Video
FR701 – Coarse woven fabric
100% post-consumer recycled polyester
NRC value .95
Colorfast to Light Grade 4 min @ 40 hrs
Colorfast to Crocking Grade 4 min dry and Grade 3 wet
Breaking strength 150 lbf min. warp and fill
Flammability Class I or A
Proudly woven in North America
Anchorage – Fine woven fabric
65% pre-consumer recycled polyester
35% post-consumer recycled polyester
NRC value .85
Colorfast to Light Grade 4 min @ 40 hrs
Colorfast to Crocking Grade 4 min dry and Grade 3 wet
Breaking strength 275 lbf min. warp and fill
Pilling Resistance Class 4 min
Flammability
CA Technical Bulletin 117-2013 Section 1
NFPA 260 Fabric Classification – Class I
ASTM E84 Class I or A
Abrasion 250,000 double rubs min, cotton duck
Proudly woven in North America
Other fabric options available upon request. Contact Us
More information available about your fabric choices
Wall mounting hardware - included
8 prong impaling clips
Ceiling mounting hardware - available for additional cost
Rotofast Cloud Anchors (hang from ceiling)
Rotofast Snap On Anchors (directly to ceiling)
ADW Panel Calculator
Calculate the recommended number of panels based on your room size to provide optimum sound control.
Easy DIY Installation Instructions

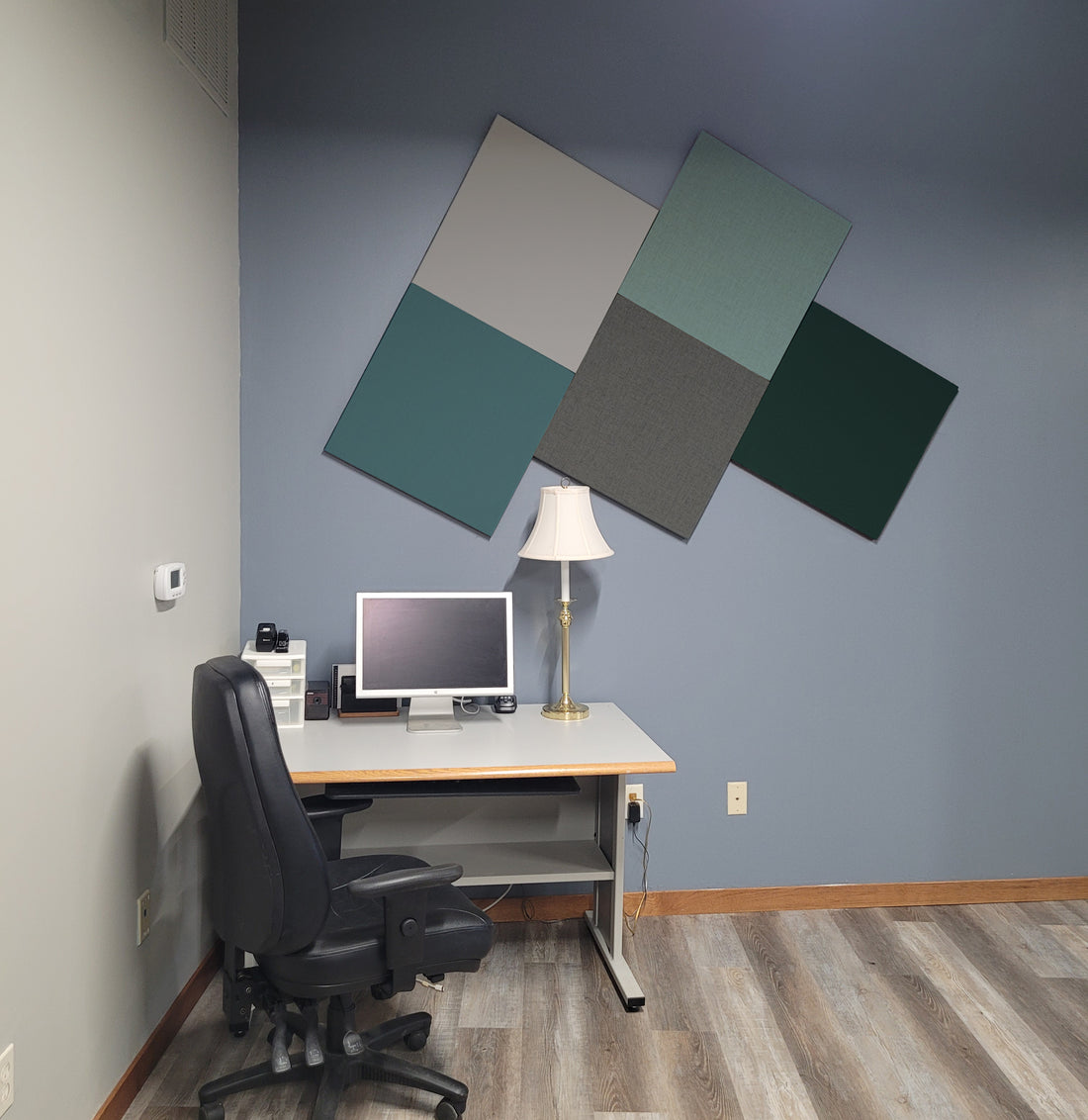

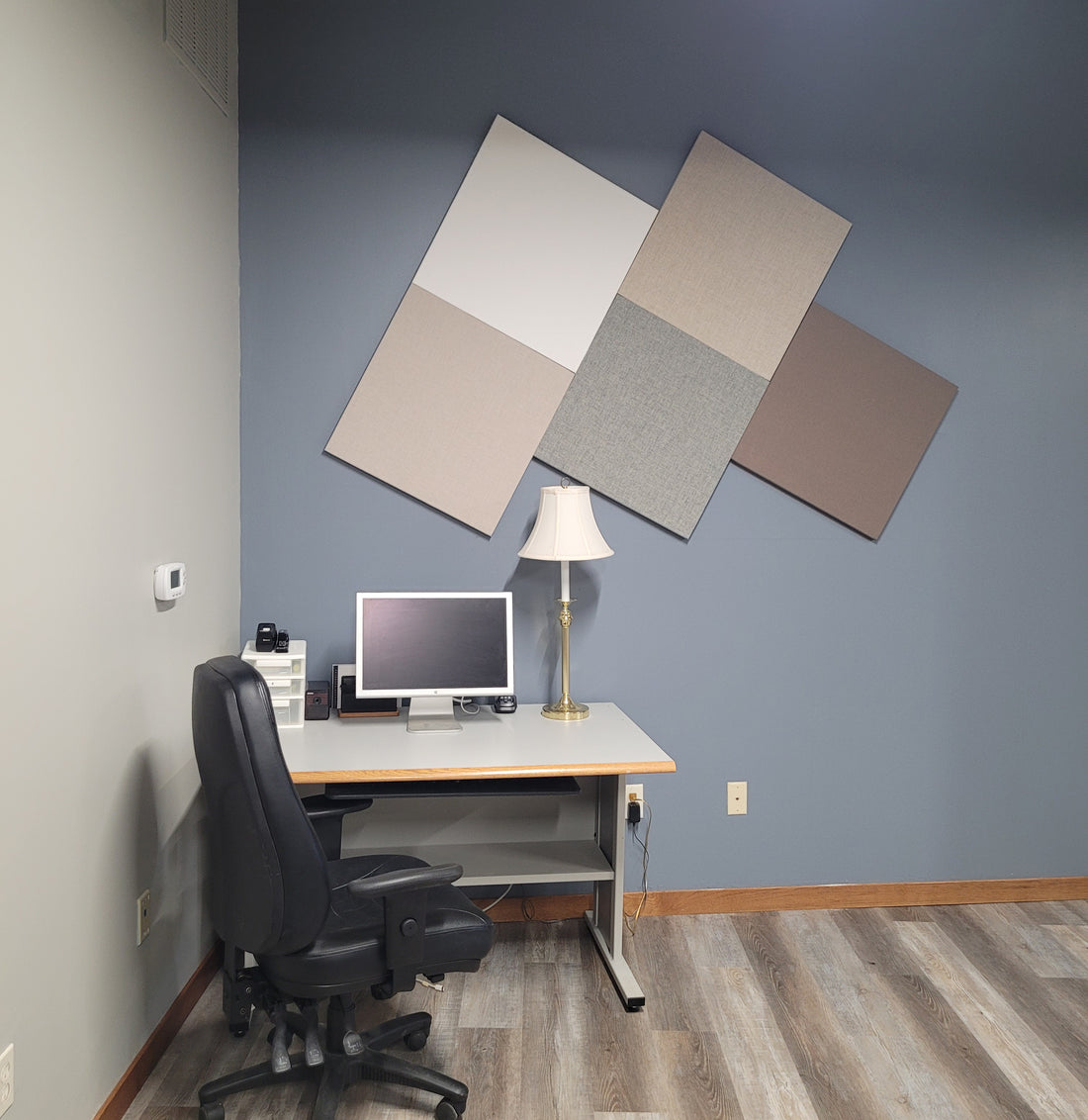

Hanging our acoustic panels is as easy as hanging a picture on the wall. It’s not necessary to pay an installer. Your ADW panels come with quick install instructions and strong impaling clips for mounting the panels securely to your wall(s) in minutes.
